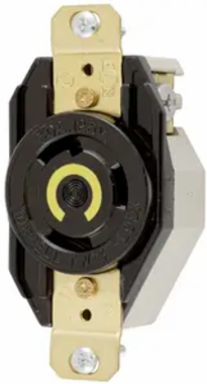

Hubbell Wiring Device-Kellems HBL2610 Twist-Lock® Industrial Flush Receptacle 30A 125V 2-Pole 3-Wire Grounding
Hubbell Wiring Device-Kellems HBL2610 Twist-Lock® Industrial Flush Receptacle 30A 125V 2-Pole 3-Wire Grounding
- MPN: HBL2610
- UPC: 783585235929
- PPN: HBL-HBL2610
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$62.37/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Black.
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL2610 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Entertainment Product Solution Guide
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.70 in x 1.31 in
- Horsepower - Maximum
- 2
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard
- Type
- Single Flush Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.30 lb.
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- L5-30R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 2610A
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.400x9.900x4.500 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585235929
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet Height
- 44.800 in
- Pallet Weight
- 869.050 lb.
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
General Literature Asset 3 Display TextEmergency Preparedness for Healthcare
Current / Amperage Rating30 A
Height1.31 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating30 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL5-30R
Number of Wires3-Wire
Size3.28 in x 1.70 in x 1.31 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
Voltage Rating125 VAC
Voltage Rating Description125 VAC
Width1.70 in
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, 30A 125V, L5-30R, BK
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.000 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight9.550 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Yes
