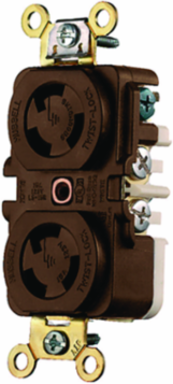

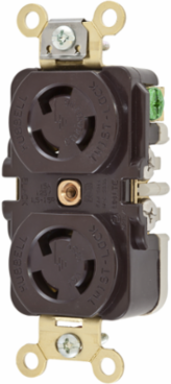

Hubbell Wiring Device-Kellems HBL4700 Twist-Lock Duplex Receptacle, 15A 125V, 2-Pole, 3-Wire, Brown, 3.29x1.70x1.17 Inch
- MPN: HBL4700
- UPC: 783585002309
- PPN: HBL-HBL4700
- UNSPSC: 39121406
CAD
$54.89
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Duplex Flush Receptacle, 15A 125V, 2-Pole 3-Wire Grounding, NEMA L5-15R, Screw Terminal, Brown.
Features
- Reinforced thermoplastic construction
- Single piece, all brass contacts
- Single point break-off tabs
- Mounting strap tabs lock the body and base together
- Self Grounding
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL4700 AutoCAD Drawing
- Current / Amperage Rating
- 15 A
- Height
- 1.17 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498;WR Rating
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 15 A
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L5-15R
- Number of Wires
- 3-Wire
- Size
- 3.29 in x 1.70 in x 1.17 in
- Standard
- Certified to CSA C22.2 No.42;Fed. Spec. W-C-596;Listed to UL 498;WR Rating
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Width
- 1.70 in
- Connectivity
- Back and Side Wired
- Nema Rating
- L5-15R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 4702
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 3.400x9.200x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585002309
- Case - Total Units
- 100 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585002308
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Country of OriginUnited States
Dimensions3.29 in x 1.70 in x 1.17 in
Horsepower - Maximum0.5
Length3.29 in
Standards - RoHS Compliance StatusCM
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesSelf Grounding
TypeReceptacle
Wire Size#18 AWG to #10 AWG
Weight0.25 lb.
General Literature Asset 1 Display TextEdgeConnect™ Technology FAQ
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG DUP RCPT, 15A 125V, L5-15R, BR
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Current Rating15 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight31.400 lb.
Lowest Level UOMEach
Pallet Height46.500 in
Pallet Weight1751.750 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
