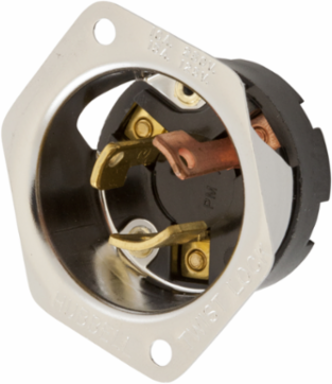

Hubbell Wiring Device-Kellems HBL7556G Twist-Lock Flanged Inlet, 10A 250V/15A 125V, 2-Pole 3-Wire, Stainless Steel, 2.31 Inch
- MPN: HBL7556G
- UPC: 783585237657
- PPN: HBL-HBL7556G
- UNSPSC: 39121406
CAD
$67.34
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 10A 250V/15A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Stainless steel casing, Brown/Stainless.
Features
- Heat resistant thermoset construction
- Stainless steel casing
- #5-40 terminal screws
- Mounting screws included
- Metallic Flange
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 2.31 in x 2.31 in x 1.13 in
- Length
- 2.31 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Wires
- 3-Wire
- Size
- 2.31 in x 2.31 in x 1.13 in
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 250/125 V
- Voltage Rating Description
- 250/125 V
- Width
- 2.31 in
- Display Size
- Standard Sized Product
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 7556G
- Material - Mounting Hardware
- Screw Mounting
- Material
- Stainless Steel
- BOX SIZE
- 3.298x12.298x2.548 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585237657
- Case - Total Units
- 50 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating10/15 A
Height1.13 in
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #12 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating10/15 A
ColorBlack
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles2-Pole
PhaseSingle Phase
Special FeaturesMetallic Flange
TypeFlanged Inlet
Wire Size#16 AWG to #12 AWG
Weight0.1 lb.
ConnectivityScrew Terminals
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG FLG INLT, 2P3W, 10A 250V/15A125V
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A160
Current Rating10 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack1.35 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight5.000 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
