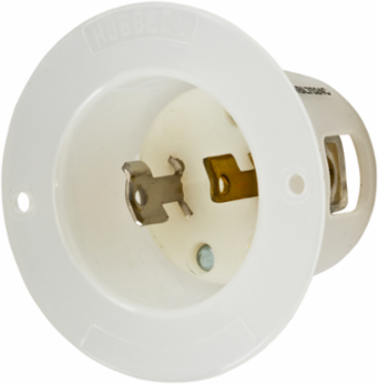

Hubbell Wiring Device-Kellems HBL7524C Twist-Lock Flanged Inlet, 15A 125V, 2-Pole, 2-Wire, White
- MPN: HBL7524C
- UPC: 783585178004
- PPN: HBL-HBL7524C
- UNSPSC: 39121406
CAD
$50.78
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 15A 125V, 2-Pole 2-Wire Non-Grounding, NEMA L1-15P, Screw Terminal, Nylon casing, Polarized, Backwired , White.
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- Mounting screws included
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL7524C AutoCAD Drawing
- Current / Amperage Rating
- 15 A
- Height
- 1.72 in
- Length
- 2.56 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 125 V
- Voltage Rating Description
- 125 V
- Width
- 2.56 in
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG FLG-INLT, 15A 125V, L1-15P
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Sub Class Code
- A08A110
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.350 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 5.000 lb.
- Lowest Level UOM
- Each
Country of OriginUnited States
Dimensions2.56 in x 2.56 in x 1.72 in
Industry Standard(s)Certified to CSA C22.2 No. 42;Fed. Spec W-C-596;Listed to UL 498
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18 AWG - #10 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating15 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingL1-15P
Number of Wires2-Wire
Size2.56 in x 2.56 in x 1.72 in
StandardCertified to CSA C22.2 No. 42;Fed. Spec W-C-596;Listed to UL 498
TypeFlanged Inlet
Wire Size#18 AWG to #10 AWG
Weight0.10 lb.
ConnectivityScrew Terminals
Nema RatingL1-15P
Number Of Wires2-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number7524C
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE4.048x13.428x2.798 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585178004
Case - Total Units50 EA
Each - Pack DescriptionEach
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
