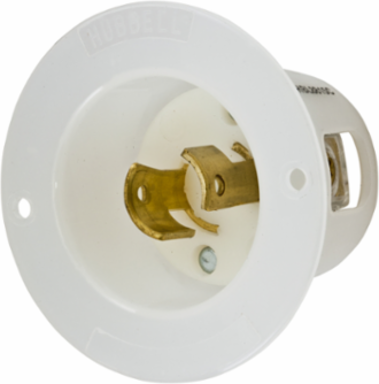

Twist-Lock® Flanged Inlet, 20A 250V, 2-Pole, 2-Wire, Nylon, White, 2.56 Inch
Hubbell Wiring Device-Kellems

Hubbell Wiring Device-Kellems HBL8815C Twist-Lock® Flanged Inlet, 20A 250V, 2-Pole, 2-Wire, Nylon, White, 2.56 Inch

  • MPN: HBL8815C
  • UPC: 783585180755
  • PPN: HBL-HBL8815C
  • UNSPSC: 39121406

CAD

$43.57

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 250V AC, 2-Pole 2-Wire Non Grounding, NEMA L2-20P, Screw Terminal, Nylon casing, Back wired, Polarized, White.

Features

  • Impact resistant thermoplastic construction
  • Backwired terminations for ease of installation
  • #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard Product

Specifications

Additional

Amperage
20 A
Number of Poles
2-Pole
Operating Temperature
-40B0C to 75B0C
NEMA Rating
L2-20P
Size
2.56 in x 2.56 in x 1.72 in
Width
2.56 in
Weight
0.15 lb.
Type
Flanged Inlet
Material
Nylon
Terminal Screws
#8-32 Slotted, Phillips, Robertson
Terminal Clamp Material
Cold rolled steel, nickel plated
Mounting Screw Material
Nickel plated brass
Class Code
A08
Phase
Single Phase
Compliance
UL Listed, CSA Certified, Fed Spec W-C-596, RoHS Compliant
Voltage250 VAC
Number of Wires2-Wire
Dielectric Voltage2000 V minimum
ApplicationExtra Heavy Duty Industrial
Length2.56 in
Height1.72 in
Terminal Accommodation#16 AWG to #8 AWG copper wire
ConnectivityScrew Terminals
Mounting HardwareScrew Mounting
Blade MaterialBrass
Assembly Screws MaterialSteel, zinc plated
ColorWhite
Sub Class CodeA08A110
FlammabilityHB or better per UL94/CSA 22.2 No.0.17
Country of OriginUS
