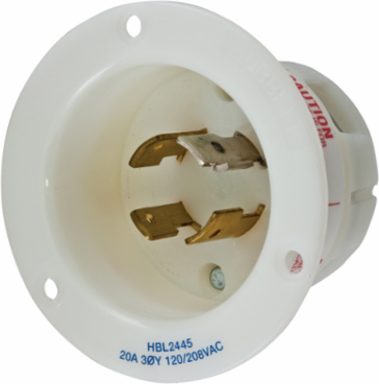

Hubbell Wiring Device-Kellems HBL2445 Twist-Lock Flanged Inlet, 20A 3-Phase 120/208V AC, 4-Pole, Nylon, White
- MPN: HBL2445
- UPC: 783585038377
- PPN: HBL-HBL2445
- UNSPSC: 39121406
CAD
$86.20
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 3-Phase WYE 120/208V AC, 4-Pole 4-Wire Non-Grounding, NEMA L18-20P, Screw Terminal, Nylon casing, Back wired, White
Features
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Additional
- Amperage
- 20 A
- Poles
- 4-Pole
- Number of Wires
- 4-Wire
- Dimensions
- 3.06 in x 3.06 in x 2.27 in
- Material
- Nylon
- NEMA Rating
- L18-20P
- Operating Temperature Range
- -40 C to 75 C
- Moisture Resistance
- IP20
- Color
- White
- Terminal Screws
- #10-32 (Slotted, Phillips, Robertson)
- Blades Material
- Brass
- Assembly Screws Material
- Steel, nickel plated
Voltage3 Phase WYE 120/208 VAC
Phases3 Phase WYE
Mounting TypeFlanged Inlet
Weight0.25 lb.
Housing MaterialNylon
Dielectric Voltage Withstand2000 V minimum
Flammability RatingHB or better per UL94/CSA 22.2 No.0.17
CertificationsUL 498 Listed; CSA C22.2 No.42 Certified; Fed.Spec. W-C-596
Country of OriginUS
Cord Grip Accommodation#16 AWG to #8 AWG solid or stranded copper wire
Terminal Clamp MaterialCold rolled steel, nickel plated
Mounting Screw MaterialNickel plated brass
