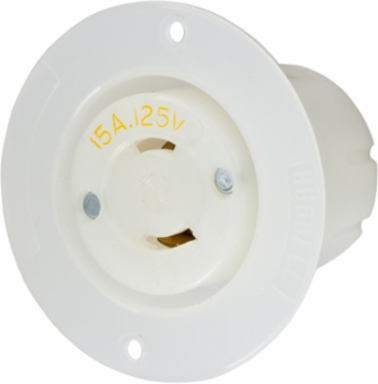

Hubbell Wiring Device-Kellems HBL7526C Twist-Lock® Flanged Receptacle, 15A 2-Pole 2-Wire, Nylon, 2.56 Inch x 2.56 Inch x 1.72 Inch
- MPN: HBL7526C
- UPC: 783585178059
- PPN: HBL-HBL7526C
- UNSPSC: 39121406
CAD
$35.26
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Receptacle, 15A 125V, 2-Pole 2-Wire Non Grounding, NEMA L1-15R, Screw Terminal, Nylon Casing, Polarized, Backwired, White.
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #8-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard
Specifications
Additional
- Amperage
- 15 A
- Number of Poles
- 2-Pole
- NEMA Rating
- L1-15R
- Dielectric Voltage
- 2,000 V minimum
- Dimensions
- 2.56 in x 2.56 in x 1.72 in
- Terminal Screws
- #8-32 Slotted, Phillips, Robertson
- Connectivity
- Screw Terminals
- Moisture Resistance
- IP20
- Country of Origin
- US
Voltage125 V
Wire2-Wire
Wire Size#18 AWG to #10 AWG copper wire
Operating Temperature-40°C to 75°C maximum continuous
MaterialNylon
Mounting ScrewsIncluded
FlammabilityHB or better per UL94
ComplianceUL 498 Listed, RoHS Compliant (CM)
