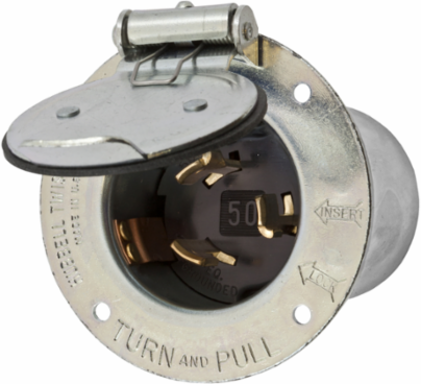

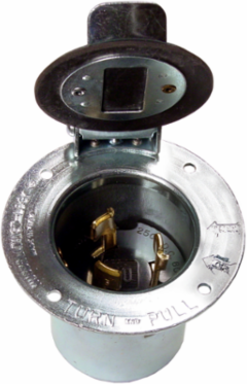

Hubbell Wiring Device-Kellems HBL3768 Twist-Lock Flanged Inlet, 50A 250V DC/600V AC, 3-Pole 4-Wire, Metallic
- MPN: HBL3768
- UPC: 783585236452
- PPN: HBL-HBL3768
- UNSPSC: 39121406
CAD
$308.09
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior with lift cover, Metallic
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- With Lift Cover
Specifications
Additional
- Amperage
- 50 A
- Number of Poles
- 3-Pole
- Number of Wires
- 4-Wire
- Dielectric Strength
- Withstands 2,000 V minimum
- Length
- 2.17 in
- Height
- 2.56 in
- Wire Size Range
- #8 AWG to #4 AWG
- Material
- Steel, Zinc Plated, Thermoset
- Terminal Screws Material
- Steel
- Mounting
- Screw Mounting
- Compliance
- Certified to CSA C22.2 No.42; Listed to UL 498
- Country of Origin
- US
Voltage250 VDC / 600 VAC
PhaseThree Phase
Operating Temperature-40°C to 75°C continuous
Dimensions2.17 in x 3.50 in x 2.56 in
Width3.50 in
Weight1.05 lb
Terminal Accommodation#10 AWG - #6 AWG Copper Wire
Blades MaterialBrass
Terminal Retainer MaterialPhenolic
TypeFlanged Inlet
ColorMetallic
