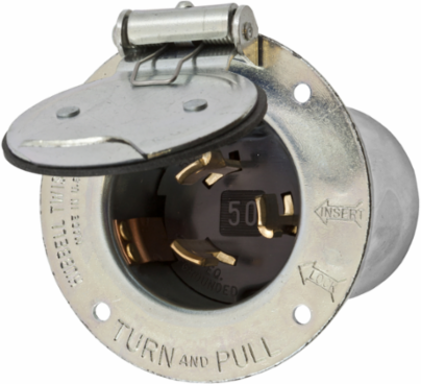

Hubbell Wiring Device-Kellems HBL7968 Twist-Lock Flanged Inlet, 50A 250V DC/600V AC, 3-Pole 4-Wire, Zinc Plated Steel
- MPN: HBL7968
- UPC: 783585237879
- PPN: HBL-HBL7968
- UNSPSC: 39121406
CAD
$281.03
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 250V DC/600V AC, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Zinc plated steel casing, thermoset interior with lift cover, Metallic
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- With Lift Cover, For Replacement Only
Specifications
Additional
- Amperage
- 50 A
- Number of Poles
- 3-Pole
- Wire Size
- #8 AWG to #4 AWG
- Dielectric Strength
- Withstands 2,000 V minimum
- Weight
- 1.10 lb
- Material
- Steel, Zinc Plated, Thermoset Interior
- Terminal Retainer Material
- Phenolic
- Connectivity
- Pressure Terminal Screws
- Standard
- Certified to CSA C22.2 No.42; Listed to UL 498
Voltage250 V DC, 600 V AC
Number of Wires4-Wire
Operating Temperature-40°C to 75°C continuous
Dimensions2.17 in x 3.50 in x 2.68 in
Mounting TypeScrew Mounting
Blades MaterialBrass
Terminal Screws MaterialSteel
ColorMetallic
