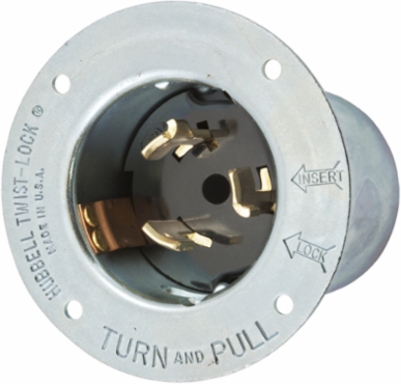

Hubbell Wiring Device-Kellems CS8175 Twist-Lock Flanged Inlet 50A 3-Phase 480V AC 3-Pole 4-Wire
- MPN: CS8175
- UPC: 783585828602
- PPN: HBL-CS8175
- UNSPSC: 39121406
CAD
$241.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, Non- NEMA, Screw Terminal, Black
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Standard Product
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Food Processing Guide
- Country of Origin
- United States
- Dimensions
- 2.17 in x 3.50 in x 2.62 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #10 AWG to #6 AWG
- Weight
- 0.85 lb.
- Connectivity
- Pressure Terminal Screws
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LOCKING INLT, 50A 480V, 3P4W
- Harmonization Code
- 8536699999
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Steel, Zinc Plated
- BOX SIZE
- 5.000x20.500x9.900 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585828602
- Case Weight
- 9.300 lb.
- Lowest Level UOM
- Each
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 2 Display Text50 Amp Twist-Lock® Devices
Current / Amperage Rating50 A
Height2.62 in
Length2.17 in
Amperage Rating50 A
ColorMetallic
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Wires4-Wire
Size2.17 in x 3.50 in x 2.62 in
StandardCertified to CSA C22.2 No.42;Listed to UL 498
Voltage Rating3-Phase Delta 480 VAC
Voltage Rating Description3-Phase Delta 480 VAC
Width3.50 in
Display SizeStandard Sized Product
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A150
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.350 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
Pallet Height50.000 in
Pallet Weight709.600 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- No
