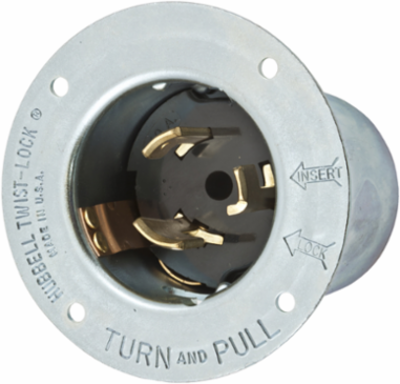

Hubbell Wiring Device-Kellems CS8475 Twist-Lock Flanged Inlet, 50A 480V, 2-Pole, 3-Wire, Metallic
- MPN: CS8475
- UPC: 783585876801
- PPN: HBL-CS8475
- UNSPSC: 39121406
CAD
$172.95
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 50A 480V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, Black
Features
- Metallic flanged casing provides maximum strength and protection
- Thermoset interior provides superior heat resistance
- Standard Product
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.50 in x 2.62 in x 2.17 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 V0;Environmental - Operating Temperatures - Maximum continuous 75°C minimum –40°C (w/o impact);Mechanical - Terminal Accommodation - #10 AWG - #6 AWG solid or stranded copper wire only
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #10 AWG to #6 AWG
- Weight
- 0.95 lb.
- General Literature Asset 1 Display Text
- Food Processing Guide
- General Literature Asset 3 Display Text
- Emergency Preparedness for Healthcare
- Display Size
- Standard Sized Product
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A150
- Current Rating
- 50 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 9.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating50 A
Height2.17 in
Length3.50 in
Amperage Rating50 A
ColorMetallic
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Wires3-Wire
Size3.50 in x 2.62 in x 2.17 in
StandardCertified to CSA C22.2 No.42;Listed to UL 498
Voltage Rating480 VAC
Voltage Rating Description480 VAC
Width2.62 in
General Literature Asset 2 Display Text50 Amp Twist-Lock® Devices
ConnectivityPressure Terminal Screws
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLOCKING INLT, 50A 3-PH 480V
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialSteel, Zinc Plated
BOX SIZE5.100x20.500x10.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585876801
Case Weight9.150 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
