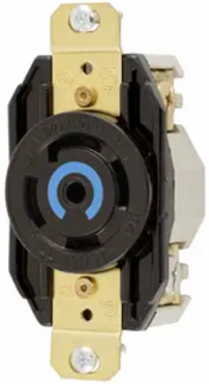

Hubbell Wiring Device-Kellems HBL2810 Flush Receptacle 30A 4-Pole 5-Wire Twist-Lock 120/208V AC, Nylon
- MPN: HBL2810
- UPC: 783585236230
- PPN: HBL-HBL2810
- UNSPSC: 39121406
CAD
$99.25
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Wye 120/208V AC, 4-Pole 5-Wire Grounding, L21-30R, Screw Terminal, Black
Features
- High-impact, abuse-resistant nylon face
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Phase
- 3 Phase WYE
- Temperature Range
- -40°C to 75°C
- NEMA Rating
- L21-30R
- Wires
- 5-Wire
- Weight
- 0.30 lb
- Connectivity
- Back and Side Wired Screw Terminals
- Mounting Hardware Material
- Screw Mounting
- Compliance
- UL Listed, CSA Certified, RoHS Compliant
- Standards - RoHS Compliance Status
- CM
- Country of Origin
- US
- Sub Class Code
- A08A110
Voltage120/208 V AC
Horsepower Rating3 HP
Dielectric Voltage Withstand2000 V minimum
Poles4-Pole
Dimensions3.28 in x 1.7 in x 1.23 in
Wire Size Range#16 AWG to #8 AWG
MaterialNylon, Brass
Terminal TypeScrew Terminal
Industry Standard(s)CSA C22.2 No.42; Fed.Spec. W-C-596; UL 498; WR Rating
Buy American CompliantYes
Class CodeA08
TypeSingle Flush Receptacle
