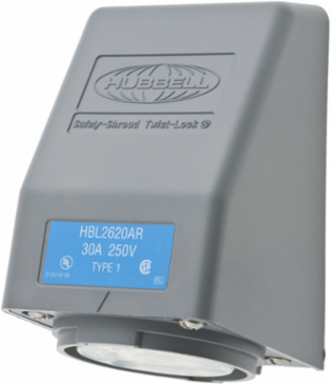

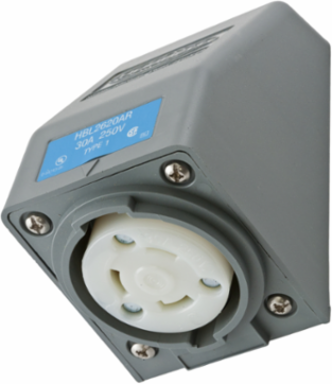

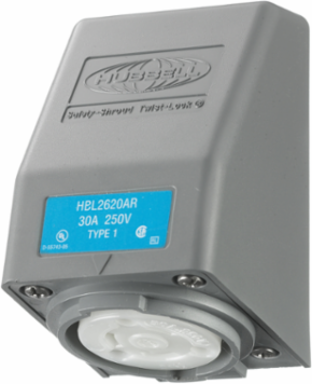

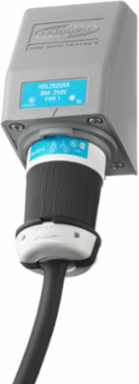

Hubbell Wiring Device-Kellems HBL2620AR Twist-Lock® Safety-Shroud® Receptacle 30A 250V AC 2-Pole NEMA L6-30R
Hubbell Wiring Device-Kellems HBL2620AR Twist-Lock® Safety-Shroud® Receptacle 30A 250V AC 2-Pole NEMA L6-30R
- MPN: HBL2620AR
- UPC: 783585234328
- PPN: HBL-HBL2620AR
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$93.29/ EA
Description
Locking Devices, Twist-Lock®, Safety-Shroud® Receptacle, 30A, 250V AC, 2 Pole, 3 Wire Grounding, NEMA L6-30R, RPT angle housing, One Gang, Gray
Features
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Engineered thermoplastic housing is impact and corrosion resistant, making it suitable for heavy-duty industrial environments
- Angled Housing
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 4.77 in x 2.85 in x 3.14 in
- Horsepower - Maximum
- 2
- Length
- 4.77 in
- Amperage Rating
- 30 A
- Color
- Gray, White
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Angled Housing
- Voltage Rating
- 250 VAC
- Weight
- 0.65 lb.
- Engineering Drawing 1 Display Text
- HBL2620AR AutoCAD Drawing
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG S/SHRD RCPT, L6-30R, ANG SRF MT,GY
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Valox™
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 7.450 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
Current / Amperage Rating30 A
Height3.14 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
PerformanceElectrical-Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C;Minimum -40°C (w/o impact)
ApplicationHeavy Duty Industrial Shrouded
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL6-30R
Number of Wires3-Wire Grounding
Size4.77 in x 2.85 in x 3.14 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Wire Size#16 AWG to #8 AWG
Width2.85 in
ConnectivityBack Wired Screw Terminals
Nema RatingL6-30R
Number Of Wires3-Wire Grounding
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A120
Current Rating30 A
Number of Gang(s)1-Gang
BOX SIZE7.700x10.500x8.900 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585234328
Case Weight7.350 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Yes
ListingsUL 498;Fed.Spec. W-C-596;CSA C22.2 No.42
