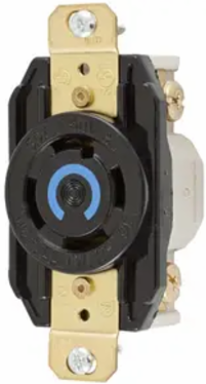

Hubbell Wiring Device-Kellems HBL2720 Industrial Twist-Lock Flush Receptacle, 30A 3-Pole 250V AC, L15-30R
- MPN: HBL2720
- UPC: 783585236131
- PPN: HBL-HBL2720
- UNSPSC: 39121406
CAD
$85.54
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
Locking Devices, Twist-Lock®, Industrial, Flush Receptacle, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, L15-30R, Screw Terminal, Black.
Features
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- Face color coding by voltage facilitates locating and mating of proper devices
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Standard
Documentation & Downloads
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2720 AutoCAD Drawing
- General Literature Asset 2 Display Text
- Healthcare Application Guide
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.7 in x 1.31 in
- Horsepower - Maximum
- 3
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- Standard
- Type
- Single Flush Receptacle
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.3 lb.
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- L15-30R
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL2720CN
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.600x10.000x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585236131
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet Height
- 42.700 in
- Pallet Weight
- 655.200 lb.
- NAICS Code
- 335931A102
General Literature Asset 1 Display TextEducation Application Guide
General Literature Asset 3 Display TextFood Processing Guide
Current / Amperage Rating30 A
Height1.31 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating30 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL15-30R
Number of Wires4-Wire
Size3.28 in x 1.7 in x 1.31 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
Voltage Rating3 Phase 250 VAC
Voltage Rating Description3 Phase 250 VAC
Width1.7 in
Display SizeStandard Sized Product
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, 30A 3P 250V, L15-30R, BK
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.15 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight10.400 lb.
Lowest Level UOMEach
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Yes
EU RoHS IndicatorYes
