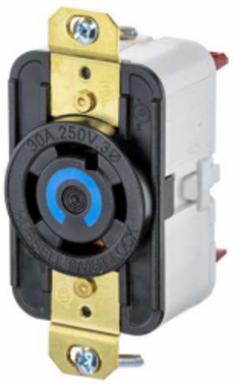

Hubbell HBL2720ST EdgeConnect Twist-Lock Receptacle, 30A 3P 250V, L15-30R, 3.28 Inch x 1.7 Inch x 1.468 Inch
- MPN: HBL2720ST
- UPC: 783585788555
- PPN: HBL-HBL2720ST
- UNSPSC: 39121406
CAD
$94.09
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
EdgeConnect™ Twist-Lock® Receptacle, 30A 3P 250V, L15-30R, BK, with Spring Termination
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- High-impact, abuse-resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
Documentation & Downloads
Specifications
Additional
| Amperage | 30 A |
|---|---|
| Number of Poles | 3 |
| Configuration | L15-30R |
| Dimensions | 3.28 in x 1.7 in x 1.468 in |
| Width | 1.7 in |
| Face Material | Nylon |
| Contacts Material | Brass |
| Mounting Strap Material | Brass |
| Moisture Resistance | IP20 |
| Country of Origin | CN |
| Voltage | 250 VAC |
|---|---|
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
| Operating Temperature | -40B0C to 75B0C |
| Length | 3.28 in |
| Height | 1.468 in |
| Base Material | Nylon |
| Spring Material | Steel |
| Flammability Rating | V2 or better per UL94/CSA 22.2 No.0.17 |
| Certifications | UL 498, CSA C22.2 No.42 |
