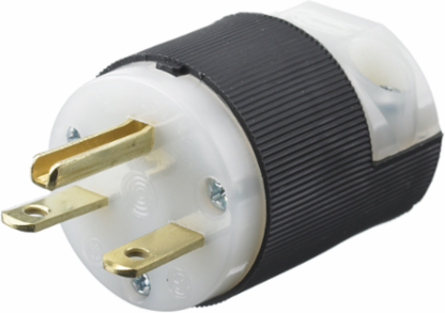

Hubbell Wiring Device-Kellems HBL5666C Insulgrip 15A 250V 2-Pole 3-Wire Male Plug, 1.97 Inch x 1.53 Inch
Hubbell Wiring Device-Kellems HBL5666C Insulgrip 15A 250V 2-Pole 3-Wire Male Plug, 1.97 Inch x 1.53 Inch
- MPN: HBL5666C
- UPC: 783585175607
- PPN: HBL-HBL5666C
- UNSPSC: 39121402
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$51.88/ EA
Description
Straight Blade Devices, Male Plug, Insulgrip Heavy Duty, Industrial/Commercial Grade, Straight, 2-Pole 3- Wire Grounding, 15A 250V, 6-15P, Black and White, Single Pack.
Features
- Ribbed nylon housing is impact and chemical resistant
- VARI-SIZE adjustable cord clamp
- Fast lead assembly screws
- Beveled housing prevents snagging
Specifications
Specifications
- Engineering Drawing 1 Display Text
- HBL5666C AutoCAD Drawing
- General Literature Asset 2 Display Text
- Pulp & Paper Solutions
- Country of Origin
- United States
- Dimensions
- 1.97 in x 1.53 in x 1.53 in
- Horsepower - Maximum
- 1.5
- Length
- 1.97 in
- Standards - RoHS Compliance Status
- CM
- Color
- Noir, blanc
- NEMA Rating
- 6-15P
- Number of Wires
- 3-Wire
- Standard
- CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
- Voltage Rating
- 250 V
- Wire Size
- #18 AWG to #10 AWG
- Weight
- 0.15 lb.
- Dielectric Strength
- Withstands 2,000V minimum
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Class Code
- A04
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL5666CCN
- Current Rating
- 15 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 1.550 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Case Weight
- 7.036 lb.
- Pallet Height
- 41.400 in
- Pallet Weight
- 1128.600 lb.
General Literature Asset 1 Display TextIndustrial Solutions
General Literature Asset 3 Display TextPULP & PAPER SOLUTIONS
Current / Amperage Rating15 A
Height1.53 in
Industry Standard(s)CSA Certified to C22.2 No. 42 File 280;NEMA® WD-6 Compliant;UL Listed to UL498 File E1706
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - UL 94 HB or better;Environmental - IP Suitability - IP20;Environmental - Operating Temperatures - Maximum continuous 75°C minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #18-10 AWG. Standed copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498 and CSA
Amperage Rating15 A
Environmental ConditionsRibbed Nylon Housing Is Impact and Chemical Resistant
Number of Poles2-Pole
Size1.97 in x 1.53 in x 1.53 in
TypePlug
Wattage3750 W
Voltage Rating Description250 V
Width1.53 in
Nema Rating6-15P
Number Of Wires3-Wire
StyleStandard
Description - InvoicePLUG, 15A 250V, 6-15P, B/W
Harmonization Code8536699902
MSDS FlagNo
Sub Class CodeA04A010
SeriesInsulgrip®
BOX SIZE3.200x8.400x3.500 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack00783585175607
Case - Total Units100 EA
Pallet - GTIN - Package70783585175606
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- Contact Manufacturer
