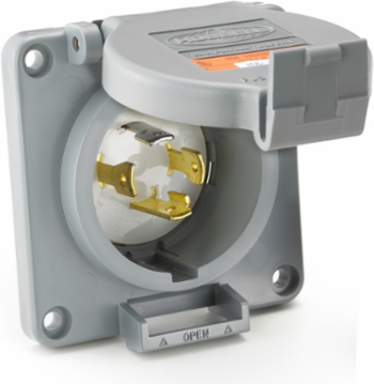

Hubbell Wiring Device-Kellems HBL2715SWR Twist-Lock Flanged Inlet, 30A 125/250V, 3-Pole 4-Wire, 3.75 Inch
- MPN: HBL2715SWR
- UPC: 783585231815
- PPN: HBL-HBL2715SWR
- UNSPSC: 39121406
CAD
$246.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Reversed Service Flanged Inlet, 30A 125/250V, 3-Pole 4-Wire Grounding, L14-30P, Screw Terminal, Gray.
Features
- UL type 4X environmental seal while in use and when closed
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Shrouded Watertight Reverse Service
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.75 in x 3.75 in x 2.69 in
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Extra Heavy Duty Industrial
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Special Features
- Shrouded Watertight Reverse Service
- Type
- Device
- Wire Size
- #16 AWG to #8 AWG
- Width
- 3.75 in
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Back Wired Screw Terminals
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- REVERSE SERVICE INLET 30A 125/250V 3P4W
- Harmonization Code
- 8536694020
- MSDS Flag
- Yes
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 7.745x3.300x12.745 (in)
- Carton - Number of Sub Packs
- 50
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585231815
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
Current / Amperage Rating30 A
Height2.69 in
Length3.75 in
Amperage Rating30 A
Dielectric StrengthWithstands 2,000V minimum
InsulationInsulated Body
Number of Wires4-Wire
Size3.75 in x 3.75 in x 2.69 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
Voltage Rating125/250 VAC
Voltage Rating Description125/250 VAC
Engineering Drawing 1 Display TextHBL2715SWR AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized Product
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack37.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units50 EA
Lowest Level UOMEach
