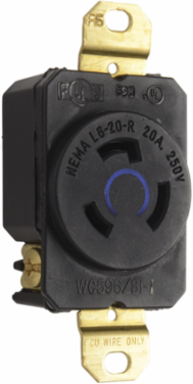

Pass & Seymour L620R 20A 250V NEMA L620 Single Receptacle, 3-Wire, Black, 1.61 Inch Width
- MPN: L620R
- UPC: 785007262056
- PPN: P-S-L620R
CAD
$22.98
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
20A 250V NEMA L620 Single Receptacle, 3-Wire, Black, 1.61 Inch Width
Features
- Compact, impact-resistant nylon face and body are ultrasonically welded together for unrivaled strength.
- One piece, high-grade brass contacts offer excellent conductivity and heat-rise resistance.
- Clearly marked NEMA configuration, rating, and third-party listing on each unit's face.
- Single-piece, solid brass mounting strap is free of easily loosened rivets found on other brands.
- Side and external screw-pressure-plate back wire capability.
Documentation & Downloads
Specifications
Additional
- Amperage
- 20 A
- NEMA Configuration Code
- L6-20R
- Number of Wires
- 3
- Height
- 2.29 in
- Number of Poles
- Double Pole
- Wire Size
- 14 - 10 AWG
- Connection Location
- Back and Side
- Mounting Strap
- Solid Brass
- Color
- Black
- Application Sector
- Industrial, Commercial
- Country of Origin
- Mexico
Voltage250 V
Operating Temperature Range-40 to 75 °C
Width1.61 in
Depth1.19 in
Number of Receptacles1
Wire Connection TypeInternal Pressure Plates
MaterialBrass, Nylon
Body FinishMatte, Impact-Resistant Nylon
CompliancecULus Listed, UL 498
Indoor/OutdoorIndoor
