Hubbell Wiring Device-Kellems HBL2811FC Twist-Lock Insulgrip Plug 30A 4-Pole 5-Wire 120/208V AC
- MPN: HBL2811FC
- UPC: 783585039978
- PPN: HBL-HBL2811FC
- UNSPSC: 39121403
CAD
$92.35
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description

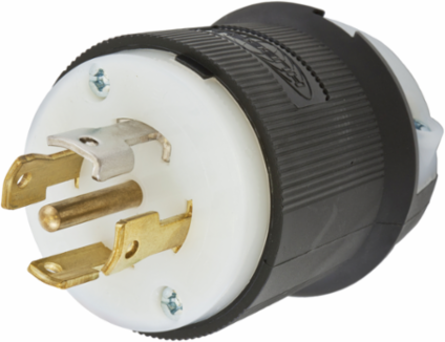

Twist-Lock®,Insulgrip® Plug, 30A, 3 Phase Y 120/208V AC, 4-Pole, 5 Wire Grounding, NEMA L21 and white for flat cable
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance
- Superior cord grip design for flat cable protects terminations from excess strain
- Clear, funnel shaped wire entry for ease of termination
- Integral dust shield protects wiring chamber from dust or contaminants
- Flat Cable Version
Specifications
Additional
- Amperage
- 30 A
- Phase
- 3 Phase WYE
- Number of Wires
- 5-Wire Grounding
- Operating Temperature
- -40b0C to 75b0C
- Cord Diameter
- 0.350" - 1.150" (9-29 mm)
- Weight
- 0.5 lb.
- Material
- Nylon
- Blade Material
- Brass
- Terminal Clamp Material
- Cold rolled steel, nickel plated
- NEMA Rating
- L21-30P
- Flammability
- HB or better per UL94/CSA 22.2 No.0.17
- Country of Origin
- PR
Voltage120/208 VAC
Number of Poles4-Pole
Dielectric Voltage2000 V minimum
Wire Size#16 AWG to #8 AWG
Size2.75 in x 2.33 in x 2.33 in
Cord TypeAll Listed Portables
Terminal Retainer MaterialClear Polycarbonate
Terminal Screws#10-32 Brass (Phillips / Slotted / Robertson)
Assembly Screws MaterialSteel, nickel plated
ListingsUL 498; CSA C22.2 No.42; Fed.Spec. W-C-596
Moisture ResistanceIP20
ColorBlack, White
