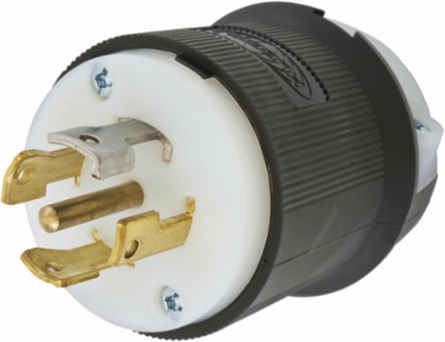

Hubbell Wiring Device-Kellems HBL2831 Industrial Twist-Lock Male Plug, 30A 4-Pole 347/600V AC, Nylon
- MPN: HBL2831
- UPC: 783585039732
- PPN: HBL-HBL2831
- UNSPSC: 39121402
CAD
$95.74
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Industrial, Male Plug, 30A 3-Phase 347/600V AC, 4-Pole 5-Wire Grounding, L23-30P, Screw Terminal, Black and White
Features
- Ribbed nylon housing provides a secure grip and impact and chemical resistance.
- Superior cord grip design protects terminations from excess strain.
- Clear, funnel shaped wire entry for ease of termination.
- Integral dust shield protects wiring chamber from dust or contaminants.
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2831 AutoCAD Drawing
- Country of Origin
- United States
- Dimensions
- 2.33 in x 2.33 in x 2.75 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Extra Heavy Duty Industrial
- Cord Type
- All Listed Portables
- NEMA Rating
- L23-30P
- Number of Wires
- 5-Wire
- Size
- 2.33 in x 2.33 in x 2.75 in
- Standard
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Voltage Rating
- 3 Phase WYE 347/600 VAC
- Voltage Rating Description
- 3 Phase WYE 347/600 VAC
- Width
- 2.33 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L23-30P
- Number Of Wires
- 5-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- HBL2831M25
- Cable Range
- 0.350 - 1.150 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 11.400 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 30 EA
- Each - Pack Description
- Each
- NAICS Code
- 335931A102
General Literature Asset 1 Display TextInsulgrip® Straight Blade and Twist-Lock® Devices
Current / Amperage Rating30 A
Height2.75 in
Length2.33 in
Amperage Rating30 A
ColorBlack, White
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles4-Pole
Phase3 Phase WYE
Special FeaturesStandard Product
TypePlugs
Wire Size#16 AWG to #8 AWG
Weight0.35 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard Sized
Number Of Poles4-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG PLUG, 30A 3P 347/600V, L23-30P, B/W
Harmonization Code8536699902
MSDS FlagNo
Sub Class CodeA08A110
Cord Range0.350"-1.150" (9-29)
Cord Diameter0.350-1.150 in
MaterialNylon
BOX SIZE7.900x12.500x9.000 (in)
Carton - Number of Sub Packs30
Carton - SCC-14 Next Lower Level Sub Pack783585039732
Case Weight11.450 lb.
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- Contact Manufacturer
