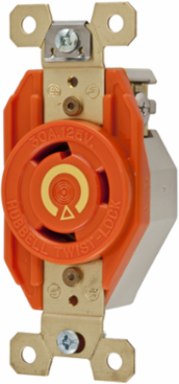

Hubbell Wiring Device-Kellems IG2610 Isolated Ground Locking Receptacle, 30A 125V, 2-Pole 3-Wire
- MPN: IG2610
- UPC: 783585872308
- PPN: HBL-IG2610
- UNSPSC: 39121406
CAD
$102.40
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Isolated Ground Industrial, Flush Receptacle, 30A 125V, 2-Pole 3-Wire Grounding, L5-30R, Screw Terminal, Orange.
Features
- Insulation barrier construction isolates ground contact from mounting strap
- Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
- High-impact, abuse-resistant nylon face
- All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
- Isolated Ground
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.28 in x 1.70 in x 1.31 in
- Horsepower - Maximum
- 2
- Length
- 3.28 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Indoor Dry Unless Protected By Additional Means
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Isolated Ground
- Voltage Rating
- 125 VAC
- Voltage Rating Description
- 125V
- Width
- 1.70 in
- Connectivity
- Back and Side Wired Screw Terminals
- Nema Rating
- L5-30R
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- IG2610CN
- Material - Mounting Hardware
- Screw Mounting
- Material
- Nylon
- BOX SIZE
- 3.400x9.200x4.400 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585872308
- Case - Total Units
- 30 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585872307
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating30 A
Height1.31 in
Industry Standard(s)Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C, Minimum -40°C (w/o impact);Mechanical - Flammability - V2 or better per UL94/CSA 22.2 No.0.17;Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating30 A
Dielectric StrengthWithstands 2,000V minimum
NEMA RatingL5-30R
Number of Wires3-Wire
Size3.28 in x 1.70 in x 1.31 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498;WR Rating
Wire Size#16 AWG to #8 AWG
Weight0.30 lb.
General Literature Asset 1 Display TextEdgeConnect™ Technology FAQ
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG RCPT, IG, 30A 125V, L5-30R, OR
Harmonization Code8536690200
MSDS FlagNo
Sub Class CodeA08A110
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack3.05 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Case Weight9.810 lb.
Lowest Level UOMEach
Pallet Height44.800 in
Pallet Weight835.800 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
