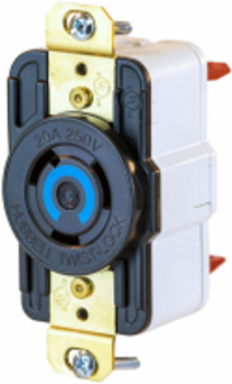

Hubbell Wiring Device-Kellems HBL2320ST EdgeConnect Twist-Lock Receptacle 20A 250V L6-20R 3.28 Inch x 1.70 Inch x 1.47 Inch
- MPN: HBL2320ST
- UPC: 783585569550
- PPN: HBL-HBL2320ST
- UNSPSC: 39121406
CAD
$48.18
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
20A, 250V EdgeConnect™ Twist-Lock® Receptacle with Spring Termination
Features
- Faster termination time
- No need for screwdriver and torque wrench
- Spring Termination eliminates strand relaxation
- High-impact, abuse-resistant nylon face
- Face color coding by voltage facilitates locating and mating of proper devices
- Twist-Lock Receptacle with Spring Termination
Documentation & Downloads
Specifications
Key Specifications
| Country of Origin | China |
|---|---|
| Dimensions | 3.28 in x 1.70 in x 1.47 in |
| Industry Standard(s) | UL Listed To UL 498;CSA Certified to Specification C22.2 No. 42;WR Rating |
| Show Sales Lookup | Yes |
| Color | Black |
| Dielectric Strength | Withstands 2,000V Minimum |
| Mounting | Screw Mount |
| Number of Poles | 2 |
| Phase | Single Phase |
| Special Features | Twist-Lock Receptacle with Spring Termination |
| Temperature Rating | Maximum Continuous 75°C; Minimum -40°C (w/o impact) |
| Wire Size | 14 AWG - 10 AWG solid, 14 AWG - 8 AWG stranded (including compact stranded) |
| Width | 1.70 in |
| General Literature Asset 2 Display Text | Healthcare Product Solutions |
| Mounting Type | Screw Mount |
| Number Of Poles | 2 |
| Class Code | A08 |
| Harmonization Code | 8536698000 |
| MSDS Flag | No |
| Material | Nylon |
| BOX SIZE | 7.700x12.500x8.800 (in) |
| Carton - Number of Sub Packs | 50 |
| Carton - SCC-14 Next Lower Level Sub Pack | 00783585569550 |
| Case Weight | 9.580 lb. |
| Pallet Height | 46.200 in |
| Pallet Weight | 1004.700 lb. |
| NAICS Code | 335931A102 |
| Current / Amperage Rating | 20 A |
|---|---|
| Height | 1.47 in |
| Length | 3.28 in |
| Application | Heavy Duty Industrial |
| Connection | Spring Termination |
| Environmental Conditions | Indoor Dry unless protected by additional means |
| NEMA Rating | L6-20R |
| Number of Wires | 3 |
| Size | 3.28 in x 1.70 in x 1.47 in |
| Standard | UL Listed To UL 498;CSA Certified to Specification C22.2 No. 42;WR Rating |
| Voltage Rating | 250 V |
| Voltage Rating Description | 250 V |
| General Literature Asset 1 Display Text | EdgeConnect™ Technology |
| General Literature Asset 3 Display Text | EdgeConnect™ Technology FAQ |
| Nema Rating | L6-20R |
| Number Of Wires | 3 |
| Freight Class Code | 06168002 |
| Image Actual Or Representative | A |
| Sub Class Code | A08A110 |
| Base Unit of Measure | EA |
| Carton - Gross Weight per Pack | 15.000 lb. |
| Carton - Pack Description | Carton |
| Carton - Total Units | 50 |
| Pallet - GTIN - Package | 70783585569559 |
| Pallet Length | 48.000 in |
| Pallet Width | 40.000 in |
