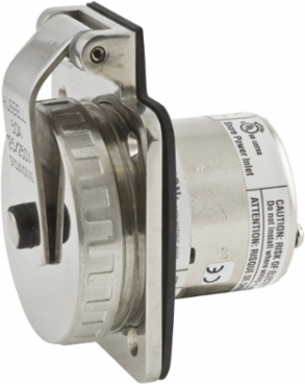

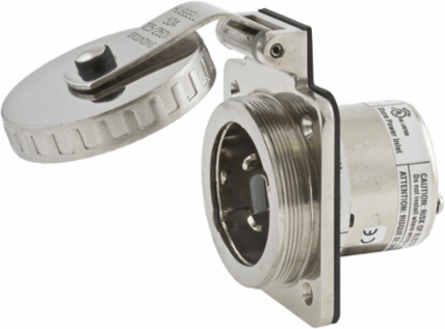

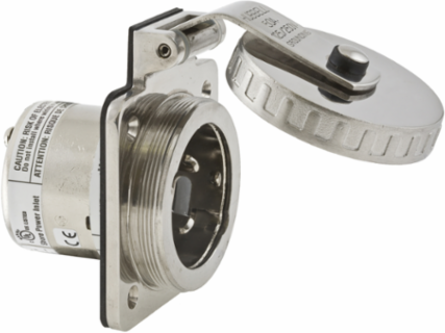

Hubbell Wiring Device-Kellems HBL504SS Marine Grade Twist-Lock Shore Power Inlet, 50A 125/250V, 3-Pole
- MPN: HBL504SS
- UPC: 783585040585
- PPN: HBL-HBL504SS
- UNSPSC: 39121406
CAD
$493.71
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Marine Grade, Shore Power Inlet, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, Chrome Plated Brass
Features
- New quick connect with backwards compatibility
- Self-closing Friction Tight Cover
- Neoprene gasket on underside of cover for sealing
- Base and Cover are stainless steel for corrosion resistance
Specifications
Key Specifications
- Country of Origin
- United States
- Width
- 5.100 in
- Performance
- Environmental - Moisture Resistance - IP56 Suitability
- Application
- Marine Wiring Devices
- Dielectric Strength
- Withstands 3000V Minimum in
- Insulation
- Insulated Body
- Number of Wires
- 4-Wire Grounding
- Standard
- UL Listed
- Voltage Rating
- 125/250 VAC
- Wire Size
- #6 AWG
- Connectivity
- Pressure Terminal Screws
- Number Of Poles
- 3-Pole
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- 63CM74;HBL504RI;SS504;SS504OEM
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 6.300x14.600x9.600 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585040585
- Case Weight
- 5.319 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 1046.500 lb.
- NAICS Code
- 335931A102
Current / Amperage Rating50 A
Industry Standard(s)UL Listed
Amperage Rating50 A
ColorStainless
Environmental ConditionsWatertight
Number of Poles3-Pole
PhaseSingle Phase
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wattage12500
General Literature Asset 1 Display TextHubbell Marine Full Line Catalog
Display SizeStandard Sized Product
Number Of Wires4-Wire Grounding
Description - InvoiceSHORE POWER INLET, 50A 125/250V, SS
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A150
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack9.85 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585040584
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
