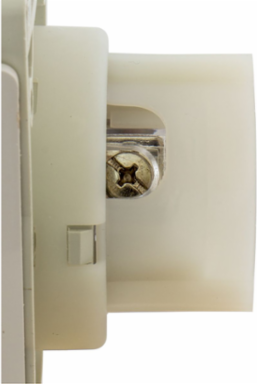

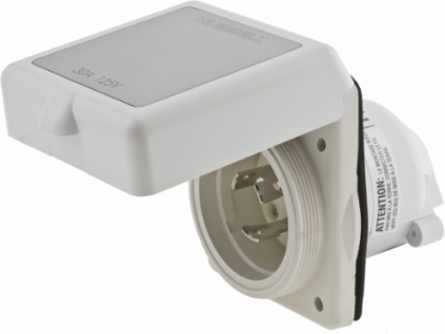

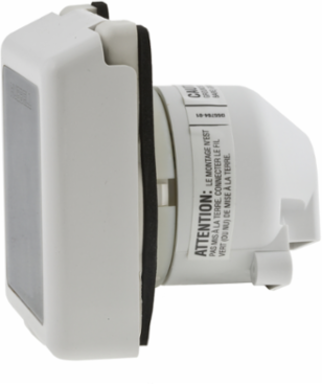

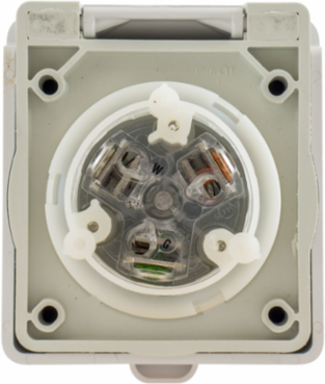

Hubbell Wiring Device-Kellems HBL503NM Marine Grade Twist-Lock Shore Power Inlet 50A 125V 2-Pole 3-Wire
Hubbell Wiring Device-Kellems HBL503NM Marine Grade Twist-Lock Shore Power Inlet 50A 125V 2-Pole 3-Wire
- MPN: HBL503NM
- UPC: 783585519487
- PPN: HBL-HBL503NM
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$290.62/ EA
Description
Locking Devices, Twist-Lock®, Marine Grade, Shore Power Inlet, 50A 125V, 2-Pole 3-Wire Grounding, Non-NEMA, Screw Terminal, White
Features
- New quick connect with backwards compatibility
- Self-closing Friction Tight Cover
- Neoprene gasket on underside of cover for sealing
- Rear enclosure is nickel plated for corrossion resistance
Specifications
Specifications
- Country of Origin
- PR
- Width
- 4.800 in
- Industry Standard(s)
- UL Listed
- Amperage Rating
- 50 A
- Color
- White
- Environmental Conditions
- Watertight
- NEMA Rating
- Non-NEMA
- Number of Wires
- 3-Wire Grounding
- Standard
- UL Listed
- Voltage Rating
- 125 VAC
- Wire Size
- #6 AWG
- Display Size
- Standard Sized Product
- Number Of Poles
- 2-Pole
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- NM503;NM503OEM
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 5.500x12.100x10.100 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585519487
- Each - Pack Description
- Each
Current / Amperage Rating50 A
Each - Width4.800 in
PerformanceEnvironmental - Moisture Resistance - IP55 Suitability
ApplicationMarine Wiring Devices
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Poles2-Pole
PhaseSingle Phase
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
Wattage6250
ConnectivityPressure Terminal Screws
Nema RatingNon-NEMA
Number Of Wires3-Wire Grounding
Description - InvoiceSHORE POWER INLET, 50A 125V, NM
Harmonization Code8536694020
MSDS FlagNo
Sub Class CodeA08A150
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack4.95 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Lowest Level UOMEach
Certifications
- EU RoHS Indicator
- No
