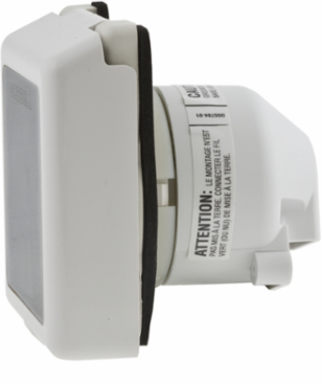

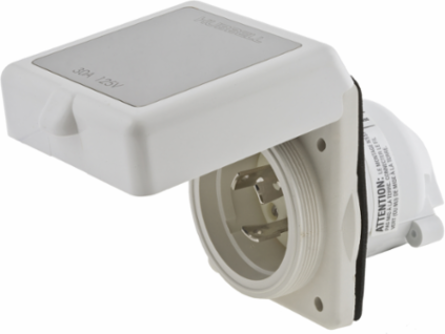

Hubbell Wiring Device-Kellems HBL504NM Twist-Lock Shore Power Inlet, 50A 125/250V, 3-Pole 4-Wire
- MPN: HBL504NM
- UPC: 783585519470
- PPN: HBL-HBL504NM
- UNSPSC: 39121406
CAD
$302.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Marine Grade, Shore Power Inlet, 50A 125/250V, 3-Pole 4-Wire Grounding, Non-NEMA, Screw Terminal, White
Features
- New quick connect with backwards compatibility
- Self-closing Friction Tight Cover
- Threaded Base for making a watertight seal
- Rear enclosure is nickel plated for corrossion resistance
Specifications
Key Specifications
- General Literature Asset 1 Display Text
- Hubbell Marine Full Line Catalog
- Current / Amperage Rating
- 50 A
- Industry Standard(s)
- UL Listed
- Amperage Rating
- 50 A
- Color
- White
- Environmental Conditions
- Watertight
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact
- Wattage
- 12500
- Connectivity
- Pressure Terminal Screws
- Number Of Poles
- 3-Pole
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Replaced Catalog Number
- NM504
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 6.300x14.300x9.700 (in)
- Carton - Number of Sub Packs
- 5
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585519470
- Case Weight
- 4.900 lb.
- Lowest Level UOM
- Each
- Pallet Height
- 44.100 in
- Pallet Weight
- 445.900 lb.
- NAICS Code
- 335931A102
Country of OriginUnited States
Width5.100 in
PerformanceEnvironmental - Moisture Resistance - IP55 Suitability
ApplicationMarine Wiring Devices
Dielectric StrengthWithstands 3000V Minimum in
InsulationInsulated Body
Number of Wires4-Wire Grounding
StandardUL Listed
Voltage Rating125/250 VAC
Wire Size#6 AWG
Display SizeStandard Sized Product
Number Of Wires4-Wire Grounding
Description - InvoiceSHORE POWER INLET, 50A 125/250V, NM
Harmonization Code8536699999
MSDS FlagNo
Sub Class CodeA08A150
Current Rating50 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack5 lb.
Carton - Pack DescriptionCarton
Carton - Total Units5 EA
Each - Pack DescriptionEach
Pallet - GTIN - Package70783585519479
Pallet Length48.000 in
Pallet Width40.000 in
Certifications
- EU RoHS Indicator
- No
