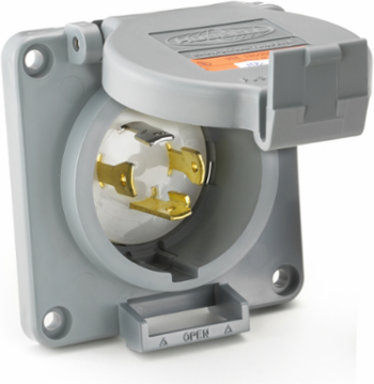

Hubbell Wiring Device-Kellems HBL2725SWR Twist-Lock Watertight Flanged Inlet, 30A 250V AC, 3-Pole 4-Wire
- MPN: HBL2725SWR
- UPC: 783585192994
- PPN: HBL-HBL2725SWR
- UNSPSC: 39121406
CAD
$246.06
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Flanged Inlet, 30A 3-Phase Delta 250V AC, 3-Pole 4-Wire Grounding, NEMA L15-30P, Screw Terminal, Gray PBT housing and flange, Reversed Service.
Features
- UL type 4X environmental seal while in use and when closed
- High impact, thermoplastic housing for heavy-duty industrial environments
- Alignment arrows with lock and unlock symbols provide a visual indication that devices are properly connected
- Catalog number and color coded voltage rating are visible even when in use
- Shrouned Watertight
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Puerto Rico
- Dimensions
- 3.75 in x 3.75 in x 2.91 in
- Horsepower - Maximum
- 7.5
- Length
- 3.75 in
- Amperage Rating
- 30 A
- Dielectric Strength
- Withstands 2,000V minimum
- NEMA Rating
- L15-30P
- Number of Wires
- 4-Wire
- Size
- 3.75 in x 3.75 in x 2.91 in
- Standard
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Voltage Rating
- 250 V
- Voltage Rating Description
- 3 Phase 250 VAC
- Engineering Drawing 1 Display Text
- HBL2725SWR AutoCAD Drawing
- General Literature Asset 2 Display Text
- PULP & PAPER SOLUTIONS
- Display Size
- Standard Sized Product
- Number Of Poles
- 3-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- WT S/SHRD FL-INLT,30A 3P 250V,L15-30P
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Material - Mounting Hardware
- Screw Mounting
- Material
- Thermoplastic
- BOX SIZE
- 4.700x9.800x9.800 (in)
- Carton - Number of Sub Packs
- 10
- Carton - SCC-14 Next Lower Level Sub Pack
- 783585192994
- Case Weight
- 3.200 lb.
- Lowest Level UOM
- Each
Current / Amperage Rating30 A
Height2.91 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
ApplicationHeavy Duty Industrial
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
Number of Poles3-Pole
PhaseThree Phase
Special FeaturesShrouned Watertight
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Width3.75 in
General Literature Asset 1 Display TextPulp & Paper Solutions
ConnectivityScrew Terminals
Nema RatingL15-30P
Number Of Wires4-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Current Rating30 A
Base Unit of MeasureEA
Carton - Gross Weight per Pack2.500 lb.
Carton - Pack DescriptionCarton
Carton - Total Units10 EA
Each - Pack DescriptionEach
NAICS Code335931A102
