Hubbell Wiring Device-Kellems

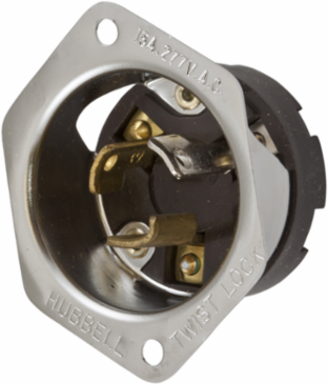

Hubbell Wiring Device-Kellems HBL4786 Twist-Lock® Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire, Stainless Steel, 2.31 x 1.75 x 1.09 Inch

Twist-Lock® Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire, Stainless Steel, 2.31 x 1.75 x 1.09 Inch
  • MPN: HBL4786
  • UPC: 783585236988
  • PPN: HBL-HBL4786
  • UNSPSC: 39121406

Spec sheet

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$63.25/ EA

Description

Locking Devices, Twist-Lock®, Industrial, Flanged Inlet, 15A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7-15P, Screw Terminal, Stainless Steel casing, Brown/Stainless.

Features

  • Heat resistant thermoset construction
  • Stainless steel casing
  • #5-40 terminal screws
  • Mounting screws included
  • Metallic Flange

Specifications

Amperage
15 A
Number of Poles
2-Pole
Temperature Range
-40°C to 75°C Maximum Continuous
Current Interrupting
Certified for full rated current
NEMA Rating
L7-15P
Length
2.31 in
Height
1.09 in
Mounting Type
Screw Mounting
Terminal Screws Size
#5-40
Compliance
UL 498, CSA C22.2 No.42, Fed.Spec.W-C-596, RoHS Compliant
Color
Black
Voltage277 V AC
Number of Wires3-Wire
Dielectric Voltage2000 V minimum
Terminal Wire Size Range#18 AWG to #10 AWG solid or stranded copper wire
Size / Dimensions2.31 in x 1.75 in x 1.09 in
Width1.75 in
MaterialStainless Steel
ConnectivityScrew Terminals
Flange TypeFlanged Inlet
Country of OriginUS
