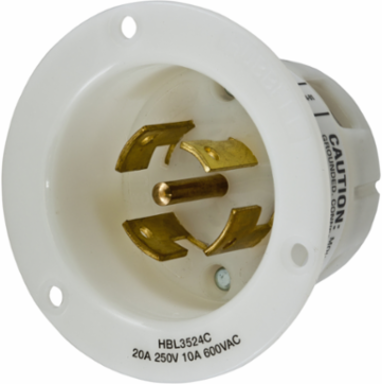

Hubbell Wiring Device-Kellems HBL3524C Insulgrip Twist-Lock Flanged Inlet, 20A 250V, 4-Pole, 5-Wire
Hubbell Wiring Device-Kellems HBL3524C Insulgrip Twist-Lock Flanged Inlet, 20A 250V, 4-Pole, 5-Wire
- MPN: HBL3524C
- UPC: 783585039930
- PPN: HBL-HBL3524C
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$158.60/ EA
Description
Locking Devices, Twist-Lock®, Industrial, Insulgrip® Flanged Inlet, 20A 250V/10A 600V AC, 4-Pole 5-Wire Grounding, Non-NEMA, Screw Terminal, Nylon casing, Back wired, White
Features
- Impact resistant thermoplastic construction
- Backwired terminations for ease of installation
- #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
- Mounting screws included
- Standard Product
Specifications
Specifications
- Country of Origin
- United States
- Dimensions
- 3.06 in x 3.06 in x 2.23 in
- Industry Standard(s)
- Certified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - HB or better per UL94/CSA 22.2 No.0.17;Environmental - Moisture Resistance - IP20 Suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C,Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wir only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 4-Pole
- Phase
- Three Phase
- Special Features
- Standard Product
- Type
- Flanged Inlet
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.3 lb.
- General Literature Asset 1 Display Text
- Entertainment Product Solution Guide
- Display Size
- Standard Sized Product
- Number Of Poles
- 4-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG FLG-INLT, 20A 250V/10A 600V, 4P5W
- Harmonization Code
- 8536694020
- MSDS Flag
- No
- Sub Class Code
- A08A160
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.500 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Lowest Level UOM
- Each
Current / Amperage Rating20/10 A
Height2.23 in
Length3.06 in
Amperage Rating20/10 A
ColorWhite
Environmental ConditionsIndoor Dry Unless Protected By Additional Means
NEMA RatingNon-NEMA
Number of Wires5-Wire
Size3.06 in x 3.06 in x 2.23 in
StandardCertified to CSA C22.2 No.42;Fed.Spec. W-C-596;Listed to UL 498
Voltage Rating250/600 VAC
Voltage Rating Description250/600 VAC
Width3.06 in
ConnectivityBack Wired Screw Terminals
Nema RatingNon-NEMA
Number Of Wires5-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Replaced Catalog Number3524C
Material - Mounting HardwareScrew Mounting
MaterialNylon
BOX SIZE6.245x10.375x8.245 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585039930
Each - Pack DescriptionEach
Certifications
- EU RoHS Indicator
- Yes
