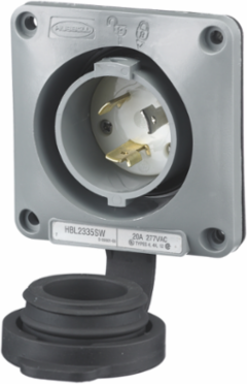

Hubbell Wiring Device-Kellems HBL2335SW Twist-Lock Watertight Flanged Inlet, 20A 277V AC, 2-Pole, Gray
- MPN: HBL2335SW
- UPC: 783585231242
- PPN: HBL-HBL2335SW
- UNSPSC: 39121406
CAD
$113.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 20A 277V AC, 2-Pole 3-Wire Grounding, NEMA L7- 20P, Screw Terminal, Gray.
Features
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Standard Product
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- United States
- Dimensions
- 3.75 in x 3.75 in x 2.28 in
- Horsepower - Maximum
- 2
- Length
- 3.75 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Temperature Rating
- Maximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
- Voltage Rating
- 277 V
- Voltage Rating Description
- 277 V
- Width
- 3.75 in
- General Literature Asset 1 Display Text
- Pulp & Paper Solutions
- Connectivity
- Screw Terminals
- Nema Rating
- L7-20P
- Number Of Wires
- 3-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A130
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.6 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Lowest Level UOM
- Each
Current / Amperage Rating20 A
Height2.28 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorGray, White
Environmental ConditionsWatertight
NEMA RatingL7-20P
Number of Wires3-Wire
Size3.75 in x 3.75 in x 2.28 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
TypeFlanged Inlet
Wire Size#16 AWG to #8 AWG
Weight0.60 lb.
Engineering Drawing 1 Display TextHBL2335SW AutoCAD Drawing
General Literature Asset 2 Display TextPULP & PAPER SOLUTIONS
Display SizeStandard Sized Product
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG WT S/SHRD FLG-INLT, 20A 277V, L7-20P
Harmonization Code8536694020
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE4.800x9.800x9.900 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585231242
Each - Pack DescriptionEach
NAICS Code335931A102
