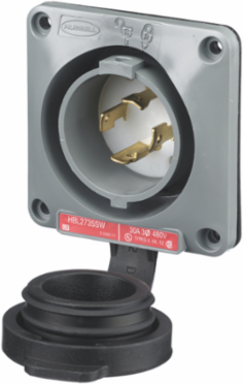

Hubbell Wiring Device-Kellems HBL2735SW Twist-Lock Watertight Flanged Inlet 30A 480V 3-Pole 4-Wire
Hubbell Wiring Device-Kellems HBL2735SW Twist-Lock Watertight Flanged Inlet 30A 480V 3-Pole 4-Wire
- MPN: HBL2735SW
- UPC: 783585231969
- PPN: HBL-HBL2735SW
- UNSPSC: 39121406
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$238.89/ EA
Description
Watertight Safety-Shroud®, Twist-Lock® Flanged Inlet, 30A 3-Phase Delta 480V AC, 3-Pole 4-Wire Grounding, NEMA L16,Screw Terminal
Features
- UL Type 4X Environmental seal protects connection while in use
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Shrouded Watertight Construction
Specifications
Specifications
- Country of Origin
- US
- Dimensions
- 3.75 in x 3.75 in x 2.44 in
- Height
- 2.44 in
- Length
- 3.75 in
- Standards - RoHS Compliance Status
- CM
- Application
- Extra Heavy Duty Industrial
- Dielectric Strength
- Withstands 2,000V minimum
- Insulation
- Insulated Body
- Number of Poles
- 3-Pole
- Phase
- Three Phase
- Special Features
- Shrouded Watertight Construction
- Type
- Flanged Inlet
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.70 lb.
- Connectivity
- Back Wired Screw Terminals
- Nema Rating
- L16-30P
- Number Of Wires
- 4-Wire
- Class Code
- A08
- Freight Class Code
- 06168002
- Image Actual Or Representative
- A
- Sub Class Code
- A08A130
- Current Rating
- 30 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 3.95 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 5 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585231968
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
Current / Amperage Rating30 A
Each - Width4.100 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG solid or stranded copper wire only;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating30 A
ColorGray, White
Environmental ConditionsWatertight
NEMA RatingL16-30P
Number of Wires4-Wire
Size3.75 in x 3.75 in x 2.44 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
Voltage Rating480 V
Voltage Rating Description480 V
Width3.75 in
Display SizeStandard Sized Product
Number Of Poles3-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Description - InvoiceLKG WT S/SHRD FL-INLT,30A3P 480V,L16-30P
Harmonization Code8536699999
MSDS FlagNo
Material - Mounting HardwareScrew Mounting
MaterialThermoplastic
BOX SIZE4.800x9.800x9.700 (in)
Carton - Number of Sub Packs5
Carton - SCC-14 Next Lower Level Sub Pack783585231969
Case Weight2.749 lb.
Lowest Level UOMEach
Pallet Height48.000 in
Pallet Weight700.000 lb.
Certifications
- EU RoHS Indicator
- Yes
