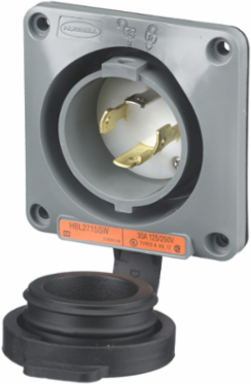

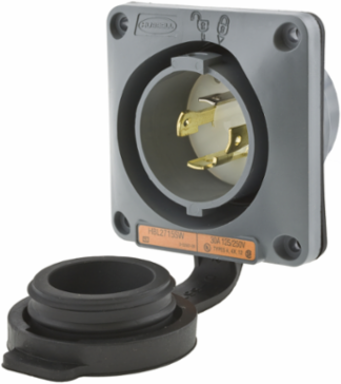

Hubbell Wiring Device-Kellems HBL2715SW Twist-Lock Watertight Flanged Inlet 30A 125/250V 3-Pole Gray
- MPN: HBL2715SW
- UPC: 783585231808
- PPN: HBL-HBL2715SW
- UNSPSC: 39121406
CAD
$193.97
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Watertight Safety-Shroud®, Locking Devices, Twist-Lock®, Flanged Inlet, 30A 125/250V AC, 3-Pole 4-Wire Grounding, NEMA L14- 30P, Screw Terminal, Gray.
Features
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Alignment arrows and lock and unlock symbols provide a visual indication that devices are properly connected.
- Closure cap is included for environmental seal when device is not in use
- Catalog number and color-coded voltage rating are easily visible even when in use
- Shrouded Watertight Construction
Documentation & Downloads
Specifications
Additional
- Amperage
- 30 A
- Number of Poles
- 3-Pole
- Phase
- Single Phase
- Weight
- 0.70 lb
- Material
- Thermoplastic, Brass, Stainless Steel, Polycarbonate
- Connectivity
- Back Wired Screw Terminals
- NEMA Rating
- L14-30P
- Operating Temperature
- -40B0C to 75B0C
- Country of Origin
- US
Voltage125/250 V
Number of Wires4-Wire
Size3.75 in x 3.75 in x 2.44 in
Wire Size Range#16 AWG to #8 AWG
TypeFlanged Inlet
Dielectric StrengthWithstands 2,000 V minimum
ComplianceUL Listed, CSA Certified To Type 4, 4X, and Type 12, RoHS Compliant
ColorGray
