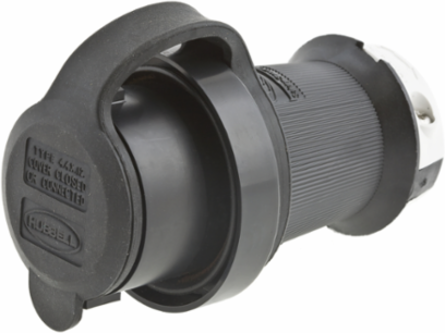

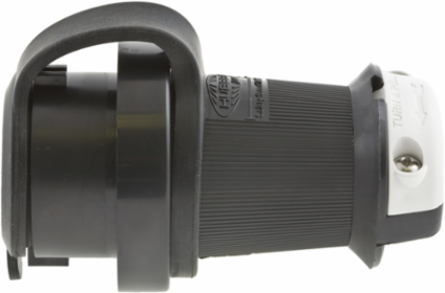

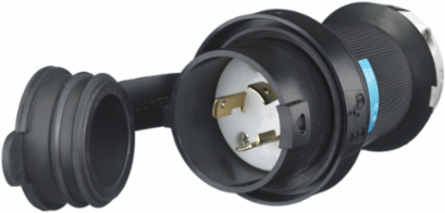

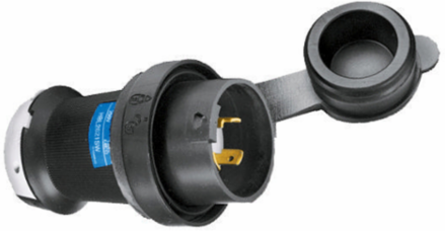

Hubbell Wiring Device-Kellems HBL2321SW Watertight Twist-Lock Male Plug, 20A 250V, L6-20P, 4.40 Inch Height
- MPN: HBL2321SW
- UPC: 783585231105
- PPN: HBL-HBL2321SW
- UNSPSC: 39121402
CAD
$117.05
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Male Plug, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20P, Screw Terminal, Black PBT housing, White PBT clamps.
Features
- UL Type 4X Environmental seal protects connection while in use.
- Impact resistant shroud protects blades against bending and breaking.
- Reduces exposure to arcing when connecting or disconnecting under load.
- Superior cord grip design protects terminations from excess strain.
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2321SW AutoCAD Drawing
- General Literature Asset 2 Display Text
- Circuit-Lock® Rounded Sloped Top Motor Disconnects
- Country of Origin
- United States
- Dimensions
- 2.77 in x 2.77 in x 4.40 in
- Industry Standard(s)
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Performance
- Electrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
- Amperage Rating
- 20 A
- Color
- Black, White
- Environmental Conditions
- Watertight
- Number of Poles
- 2-Pole
- Phase
- Single Phase
- Special Features
- Standard Product
- Type
- Plugs
- Wire Size
- #16 AWG to #8 AWG
- Weight
- 0.60 lb.
- Connectivity
- Pressure Terminal Screws
- Display Size
- Standard Sized
- Number Of Poles
- 2-Pole
- Operating Temperature
- Maximum continuous 75°C and minimum -40°C without Impact
- Description - Invoice
- LKG WT S/SHRD PLUG, 20A 250V, L6-20P
- Harmonization Code
- 8536699902
- MSDS Flag
- No
- Cable Range
- 0.360 - 0.930 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.700 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585231104
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextIndustrial Solutions
Current / Amperage Rating20 A
Height4.40 in
Length2.77 in
Standards - RoHS Compliance StatusCM
ApplicationExtra Heavy Duty Industrial
Cord TypeAll Listed Portables
NEMA RatingL6-20P
Number of Wires3-Wire
Size2.77 in x 2.77 in x 4.40 in
StandardUL Listed, CSA Certified To Type 4, 4X And Type 12
Voltage Rating250 V
Voltage Rating Description250 V
Width2.77 in
Dielectric StrengthWithstands 2,000V minimum
Nema RatingL6-20P
Number Of Wires3-Wire
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Cord Range0.360"-0.930" (9-24)
Cord Diameter0.360-0.930 in
MaterialComposite
BOX SIZE5.800x18.800x8.100 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585231105
Case Weight7.510 lb.
Lowest Level UOMEach
Pallet Height46.400 in
Pallet Weight720.000 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Contact Manufacturer
