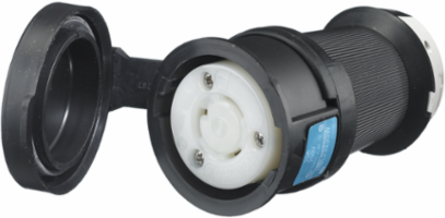

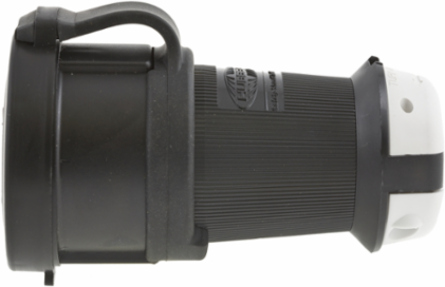

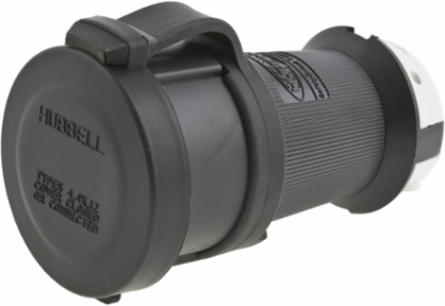

Hubbell Wiring Device-Kellems HBL2323SW Locking Female Connector Body, 20A 250V, NEMA L6-20R, Watertight
- MPN: HBL2323SW
- UPC: 783585231129
- PPN: HBL-HBL2323SW
- UNSPSC: 39121421
CAD
$132.37
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Locking Devices, Twist-Lock®, Watertight Safety-Shroud®, Female Connector Body, 20A 250V AC, 2-Pole 3-Wire Grounding, NEMA L6-20R, Screw Terminal, Black PBT housing, White PBT clamps.
Features
- UL Type 4X Environmental seal protects connection while in use.
- One-piece, engineered thermoplastic housing is impact-resistant for heavy-duty industrial environments
- Closure cap is included for environmental seal when device is not in use
- Superior cord grip design protects terminations from excess strain.
- Standard Product
Specifications
Key Specifications
- Engineering Drawing 1 Display Text
- HBL2323SW AutoCAD Drawing
- General Literature Asset 2 Display Text
- Industrial Solutions
- Country of Origin
- United States
- Dimensions
- 2.57 in x 2.57 in x 4.40 in
- Horsepower - Maximum
- 2
- Length
- 2.57 in
- Standards - RoHS Compliance Status
- CM
- Application
- Heavy Duty Industrial
- Environmental Conditions
- Watertight
- NEMA Rating
- L6-20R
- Size
- 2.57 in x 2.57 in x 4.40 in
- Standard
- UL Listed, CSA Certified To Type 4, 4X And Type 12
- Type
- Connector Body
- Voltage Rating Description
- 250 V
- Width
- 2.57 in
- Dielectric Strength
- Withstands 2,000V minimum
- Nema Rating
- L6-20R
- Number Of Wires
- 3-Wire
- Wire Size
- #16 AWG to #8 AWG
- Description - Invoice
- LKG WT S/SHRD CONN, 20A 250V, L6-20R
- Harmonization Code
- 8536690200
- MSDS Flag
- No
- Cable Range
- 0.360 - 0.930 in
- Material - Mounting Hardware
- Cord Mounted
- Current Rating
- 20 A
- Base Unit of Measure
- EA
- Carton - Gross Weight per Pack
- 6.450 lb.
- Carton - Pack Description
- Carton
- Carton - Total Units
- 10 EA
- Each - Pack Description
- Each
- Pallet - GTIN - Package
- 70783585231128
- Pallet Length
- 48.000 in
- Pallet Width
- 40.000 in
General Literature Asset 1 Display TextSafety Product Guide
General Literature Asset 3 Display TextEducation Application Guide
Current / Amperage Rating20 A
Height4.40 in
Industry Standard(s)UL Listed, CSA Certified To Type 4, 4X And Type 12
PerformanceElectrical - Current Interrupting - Certified for current interrupting at full rated current;Electrical - Dielectric Voltage - Withstands 2,000V minimum;Environmental - Flammability - V0 per UL94 or CSA 22.2 No.0.17;Environmental - Moisture Resistance - Type 4, 4X, 12, IP66 suitability;Environmental - Operating Temperatures - Maximum Continuous 75°C Minimum -40°C (w/o impact);Mechanical - Terminal Accommodation - #16 AWG - #8 AWG stranded copper wire only.;Mechanical - Terminal Identification - Terminals identified in accordance with UL 498
Amperage Rating20 A
ColorBlack, White
InsulationInsulated Body
Number of Poles2-Pole
Special FeaturesStandard Product
Temperature RatingMaximum Continuous: 75° C; Minimum Continuous: -40° C w/o impact, -25° with impact.
Voltage Rating250 V
Weight0.55 lb.
ConnectivityPressure Terminal Screws
Display SizeStandard
Number Of Poles2-Pole
Operating TemperatureMaximum continuous 75°C and minimum -40°C without Impact
Class CodeA08
Freight Class Code06168002
Image Actual Or RepresentativeA
Sub Class CodeA08A130
Cord Range0.360"-0.930" (9-24)
Cord Diameter0.360-0.930 in
MaterialComposite
BOX SIZE5.800x18.900x8.000 (in)
Carton - Number of Sub Packs10
Carton - SCC-14 Next Lower Level Sub Pack783585231129
Case Weight7.650 lb.
Lowest Level UOMEach
Pallet Height46.400 in
Pallet Weight734.400 lb.
NAICS Code335931A102
Certifications
- EU RoHS Indicator
- Yes
