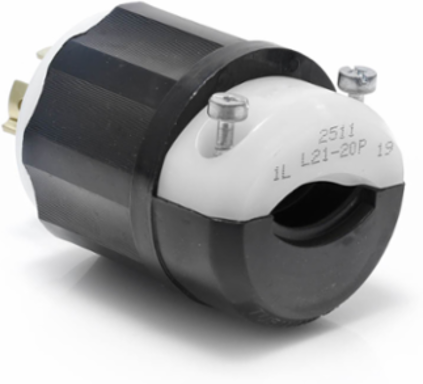

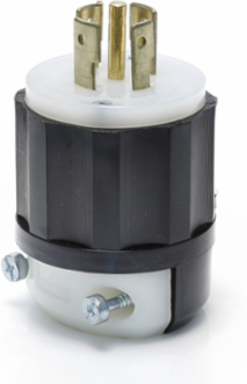

Leviton 2511 Locking Plug 20 Amp 120/208 Volt NEMA L21-20P Industrial Grade Black & White
Leviton 2511 Locking Plug 20 Amp 120/208 Volt NEMA L21-20P Industrial Grade Black & White
- MPN: 2511
- UPC: 078477808511
- PPN: LEV-2511
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$66.52/ EA
Description

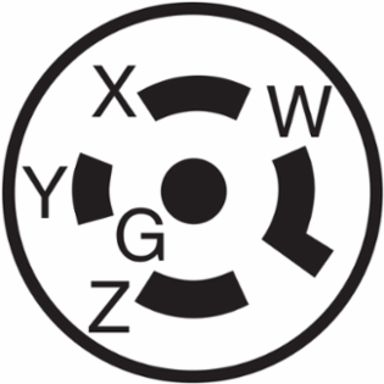

20 Amp, 120/208 Volt 3-Phase Y, NEMA L21-20P, 4P, 5W, Locking Plug, Industrial Grade, Grounding - BLACK-WHITE
Features
- Leviton's Black & White line of industrial grade plugs, connectors, flanged inlets, and outlets offer superior performance, long lasting reliability and features that are backed by a limited lifetime warranty:
- One piece contacts reduce friction and overheating
- Unique cord clamp accepts wide range of cord sizes
- Rugged nylon construction resists impact, sunlight, chemicals, and rough use
- Industry exclusive limited lifetime warranty
Specifications
Standards and Certifications
- ANSI
- C-73
- NEMA
- WD-6
- UL Fed Spec WC-596
- File E13393
- Warranty
- Limited Lifetime Warranty
CSA C22.2 No. 42File LR-406
NOM057
UL498File E13393
Material Specifications
- Assembly Screws
- Steel, Zinc Plated
- Blades/Contacts
- Solid Brass
- Clamp Insert
- Nylon
- Cord-Clamp
- Nylon
- Wire Module
- Nylon
Back CoverThermoplastic
Body MaterialImpact Modified Nylon
ColorBlack-White
Terminal ScrewsBrass
Mechanical Specifications
- At Rated Voltage
- 2 HP
- Product ID
- Ratings are permanently marked on device
- Terminal ID
- Brass-Hot, Green-Ground, Silver-Neutral
- Wire Gauge
- 14-10 AWG
Cord Range.595 - .895
Terminal Accom.18-10 AWG
Torque Range10-14 in-lbs
Specifications
- Country of Origin
- Mexico
RoHS CompliantTrue
Product Features
- Brand
- Black and White
Device TypeLocking Plug
Environmental Specifications
- Environment
- Dry
- Operating Temperature
- -40°C to 60°C
FlammabilityRated HB or better UL94
Electrical Specifications
- Amperage
- 20 A
- Dielectric Voltage
- Withstands 2000V per UL498
- Phase
- 3-Phase WYE
- Temperature Rise
- Max 30C after 250 cycles OL at 200 percent rated current
- Wire
- 5
Current InterruptingCertified for current interrupting at full rated current
GroundingGrounding
Pole4
Voltage120/208 VAC
