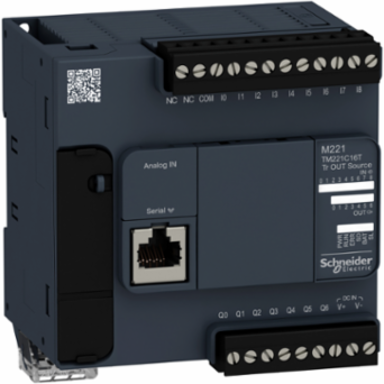

Schneider Electric TM221C16T Modicon M221 Logic Controller, 16 I/O, 9 Discrete Inputs, 7 Transistor Outputs
- MPN: TM221C16T
- PPN: SCH-TM221C16T
CAD
$390.52
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Company Stock:
0
Loading dialog...
Looking to buy a large quantity?
To view product inventory
Spec sheet
Description
Modicon M221 Logic Controller, 16 I/O, 9 Discrete Inputs, 7 Transistor Outputs
Documentation & Downloads
Specifications
Key Specifications
- Country of Origin
- Brazil, China, France, Taiwan
Depth70 mm
Communications & Management Attributes
- Communication Port Protocol
- USB port USB - SoMachine-Network, non isolated serial link Modbus master/slave - RTU/ASCII or SoMachine-Network
Complementary Attributes
- Integrated Connection Type
- USB port mini B USB 2.0, non isolated serial link serial 1 RJ45 RS485, non isolated serial link serial 2 RJ45 RS232/RS485
- Maximum Power Consumption In W
- 10 W 24 V with max number of I/O expansion module), 3.9 W 24 V without I/O expansion module)
- Maximum Tungsten Load
- <12 W output and fast output, <12 W output and fast output<12 W output and fast output, <12 W output and fast output
- Maximum Leakage Current
- 0.1 mA transistor output
Maximum Cable Distance Between Devicesshielded cable <10 m fast input, unshielded cable <30 m output, unshielded cable <30 m digital input, unshielded cable <1 m analog input, shielded cable <3 m fast output
Maximum Size Of Object Areas512 %KW constant words, 512 %M memory bits, 255 %TM timers, 8000 %MW memory words, 255 %C counters
Maximum Current Per Output Common3.5 A
Maximum Voltage Drop<1 V<1 V
Important Information Attributes
- Persona Type Ids
- EU, OM, OM8
- Clock Drift
- <= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C<= 30 s/month 25-25 °C, <= 30 s/month 25-25 °C
- Control Signal Type
- pulse/direction, A/B, single phase
- Electromagnetic Emission
- conducted emissions 79 dBμV/m QP/66 dBμV/m AV power lines (AC))0.15-0.5 MHz IEC 55011, conducted emissions 73 dBμV/m QP/60 dBμV/m AV power lines (AC))0.5-300 MHz IEC 55011, conducted emissions 120...69 dBµV/m QP power lines)10-150 kHz IEC 55011, conducted emissions 63 dBμV/m QP power lines)1.5-30 MHz IEC 55011, radiated emissions 40 dBμV/m QP class A 10 m)30-230 MHz IEC 55011, conducted emissions 79...63 dBμV/m QP power lines)150-1500 kHz IEC 55011, radiated emissions 47 dBμV/m QP class A 10 m)200-1000 MHz IEC 55011
- Insulation
- between input and internal logic 500 V AC, non-insulated between inputs, between output and internal logic 500 V AC, non-insulated between analogue input and internal logic, non-insulated between analogue inputs, between supply and ground 1500 V AC, between input and ground 500 V AC, between supply and internal logic 2300 V AC
- Memory Capacity
- 256 kB user application and data RAM 10000 instructions, 256 kB internal variables RAM
- Positioning Functions
- PTO 2 pulse/direction 100 kHz), PTO 1 CW/CCW 100 kHz)
- Resistance To Electromagnetic Fields
- 10 V/m 80 MHz...1 GHz IEC 61000-4-3, 3 V/m 1.4 GHz...2 GHz IEC 61000-4-3, 1 V/m 2...2.7 GHz IEC 61000-4-3
- Resistance To Fast Transients
- 2 kV IEC 61000-4-4 power lines), 2 kV IEC 61000-4-4 relay output), 1 kV IEC 61000-4-4 I/O), 1 kV IEC 61000-4-4 Ethernet line), 1 kV IEC 61000-4-4 serial link)
- Transmission Rate
- 1.2...115.2 kbit/s (115.2 kbit/s by default) 15-15 m RS485, 1.2...115.2 kbit/s (115.2 kbit/s by default) 3-3 m RS232, 480 Mbit/s USB
- Voltage State 0 Guaranteed
- <= 5 V input, <= 5 V input<= 5 V input, <= 5 V input
- Certificate Agency
- RCM, LR, cULus, ABS, EAC, DNV-GL, CE, UKCA, cULus HazLoc
- Carbon Footprint Of The Distribution Phase [A4]
- 1.0939127986709865, 1 kg CO2 eq.
- Carbon Footprint Of The Installation Phase [A5]
- 0 kg CO2 eq., 0.00812169151948557
- Carbon Footprint Of The Use Phase [B2, B3, B4, B6]
- 80 kg CO2 eq., 80.0953910374539
- Local Publishable Date
- 2026-01-12
- Stocking Flag
- N
- Device Type
- PLC System - PLC CPU
- Traceability
- Yes
- Average Life Duration
- 20 year(s)
- Weee Product Category
- 5
- Eoli Availability Display
- Yes
- Reach Full Compliance Status
- Reference contains Substances of Very High Concern above the threshold
- Reach Compliance Directive
- Reference contains Substances of Very High Concern above the threshold
- Rohs Eur Status
- Compliant By Exemption
- Rohs Eur Full Compliance Status
- Compliant By Exemption
- China Rohs Label
- 5
- Without Single Use Plastic
- No
- Dangerous Goods Code
- LITHIUM METAL BATTERIES WITH EQUIP. CELL : ≤ 1g OR Battery ≤ 2g
- Tier
- 1
- Function Option
- Standard
- Market Segmentation
- Industrial
- Conversion Time
- 1 ms per channel + 1 controller cycle time analog input
- Data Storage Equipment
- 2 GB SD card optional)
- Exct Time For Event Task
- 60 µs response time
- Execution Time Per Instruction
- 0.2 µs Boolean
- Inrush Current
- 35 A
- Marking
- CE
- Product Availability
- Stock - Normally stocked in distribution facility
- Protection Type
- overload and short-circuit protection 0.2 A
- Realtime Clock
- with
- Reset Time
- 1 s automatic reset
- Returnability
- Yes
- Software Version
- v6.2.2
- Supply Voltage Limits
- 20.4-28.8 V
- Total Lifecycle Carbon Footprint
- 100 kg CO2 eq.
- Pep Code
- ENVPEP1403012EN
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
- Data Source
- extrapolated product
- Functional-unit Quantity
- 1
- Reference Lifetime, In Y
- 10
- Energy Model - Installation [A5]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Energy Model - End Of Life [C1-c4]
- Electricity Mix; Low voltage; 2018; Europe, EU-27
- Width Nominal
- 95 mm
- Discrete I/O Number
- 16
- Package Weight(Lbs)
- 551.0 g
- Warranty (In Months)
- 18
Persona Type NamesEnd User, Original Equipment Manufacturer, OEM - Control Panelbuilder
Configurable Filtering Time0 ms input, 3 ms input, 12 ms input
Electrical Connectionremovable screw terminal block for inputs, removable screw terminal block for outputs, terminal block, 3 for connecting the 24 V DC power supply, connector, 4 for analogue inputs, mini B USB 2.0 connector for a programming terminal
Function Availablefrequency generator, PWM, PLS
Local Signalling1 LED (green) for PWR, 1 LED (green) for RUN, 1 LED (red) for module error (ERR), 1 LED (green) for SD card access (SD), 1 LED (red) for BAT, 1 LED (green) for SL1, 1 LED (green) for SL2, 1 LED per channel (green) for I/O state
Mounting Supporttop hat type TH35-15 rail IEC 60715, top hat type TH35-7.5 rail IEC 60715, plate or panel with fixing kit
Resistance To Conducted Disturbances10 V 0.15...80 MHz IEC 61000-4-6, 3 V 0.1...80 MHz Marine specification (LR, ABS, DNV, GL), 10 V spot frequency (2, 3, 4, 6.2, 8.2, 12.6, 16.5, 18.8, 22, 25 MHz) Marine specification (LR, ABS, DNV, GL)
Resistance To Electrostatic Discharge8 kV in air IEC 61000-4-2, 4 kV on contact IEC 61000-4-2
Response Time5 µs turn-off, I0, I1, I6, I7 fast input35 µs turn-off, I2...I5 input, 5 µs turn-on, I0, I1, I6, I7 fast input, 35 µs turn-on, other terminals input, 100 µs turn-off, other terminals input, 5 µs turn-on, turn-off, Q0...Q1 output, 50 µs turn-on, turn-off, Q2...Q3 output, 300 µs turn-on, turn-off, other terminals output
Vibration Resistance1 gn 8.4-150 Hz panel mounting3.5 mm 5-8.4 Hz symmetrical rail, 3.5 mm 5-8.4 Hz panel mounting, 1 gn 8.4-150 Hz symmetrical rail
Voltage State 1 Guaranteed>= 15 V input, >= 15 V input>= 15 V input, >= 15 V input
Maximum Number Of I/O Expansion Module4 (local I/O-Architecture), 11 (remote I/O-Architecture)
Carbon Footprint Of The End-of-life Phase [C1 To C4]1.0407289909350657, 1 kg CO2 eq.
Carbon Footprint Of The Manufacturing Phase [A1 To A3]18 kg CO2 eq., 17.680004155026477
Local Data StatusPublishable
Return IndicatorY
Stock Policy2
ServiceabilityYes
Field Service DivisionIDIBS
Weee ScopeIn
Scope PerimeterAt least in Europe
End Of Life Doc RefENVEOLI1403012EN
Reach Full Compliance Status IdCONTAINS_SVHC
Rohs Eur In ScopeNo
Rohs Eur Conformity Date1901
China Rohs In ScopeYes
With Recycled CardboardYes
Product Contributes To Saved And Avoided EmissionsNo
Tier Id1
Function Option IdSTANDARD
Market Segmentation IdINDUSTRIAL
Product Kit IdentifierN
Data Backed Up256 kB built-in flash memory backup of application and data
Environmental Characteristicordinary and hazardous location
Execution Time For 1 Kinstruction0.3 ms event and periodic task
Immunity To Microbreaks10 ms
Lsb Value10 mV
Mechanical Durability20000000 cycles transistor output
Product Or Component Typelogic controller
Range Of ProductModicon M221
Regulation Loopadjustable PID regulator up to 14 simultaneous loops
Resistance To Magnetic Fields30 A/m 50/60 Hz IEC 61000-4-8
Shock Resistance147 m/s² 11 ms
Supplyserial)serial link supply 5 V, <200 mA
Sustainable PackagingYes
Weee LabelThe product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Database Version2023-02
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
Functional-unit DescriptionTo perform control for applications using I/O communication from 16 to 40 I/Os, Ethernet (RJ45) or Serial Link (RJ45) communication, and optional I/O modules, 57,20% of the time for 10 years.
Functional-unit UnitUnit
Energy Model - Manufacturing [A1-a3]Taiwan, TW
Energy Model - Use [B6]Electricity Mix; Low voltage; 2018; Europe, EU-27
Height Nominal90 mm
[Us] Rated Supply Voltage24 V DC
Nbr. Of Units In Pkg.1
Take-backNo
Environment Attributes Main
- Ambient Air Temperature For Operation
- -10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation), -10-35 °C vertical installation)-10-55 °C horizontal installation), -10-55 °C horizontal installation), -10-35 °C vertical installation)
- Relative Humidity
- 10-95 %, without condensation in operation), 10-95 %, without condensation in storage)
- Recycled Metal Content At Cr Level
- 0 %
- Mercury Free
- Yes
- Circularity Profile
- ENVEOLI1403012EN
- Eu Rohs Directive
- Compliant By Exemption
- Operating Altitude
- 0...6561.68 ft (0...2000 m)
- Packaging Without Single Use Plastic
- No
- Storage Altitude
- 0-3000 m
- Pep Verification Date
- 2024-11-01
- Psr Version
- PSR-0005-ed3.1-EN-2023 12 08
Ambient Air Temperature For Storage-25-70 °C, -25-70 °C
Take BackNo
China Rohs RegulationX
Carbon Footprint99.9181586736059
Environmental DisclosureENVPEP1403012EN
Ip Degree Of ProtectionIP20 with protective cover in place
Packaging Made With Recycled CardboardYes
Reach RegulationReference contains Substances of Very High Concern above the threshold
Pep CodeENVPEP1403012EN
Pcr VersionPCR-4-ed4-EN-2021 09 06
Type Of Verification For The PepIndependent internal review
General Attributes
- Product Or Component Type
- logic controller
Range Of ProductModicon M221
ETIM
- ETIM 8
- EC000236
ETIM 9EC000236
Output Attributes
- Output Frequency
- 100 kHz fast output (PWM/PLS mode) Q0...Q1, 5 kHz output Q2...Q3, 0.1 kHz output Q4...Q6
- Discrete Output Current
- 0.5 A
- Discrete Output Number
- 7 transistor 2 fast output
- Discrete Output Voltage
- 24 V DC
Power Supply Output Current0.325-0.325 A 5 V expansion bus, 0.15-0.15 A 24 V expansion bus
Discrete Output Logicpositive logic (source)
Discrete Output Typetransistor
Maximum Current Per Output Common3.5 A
Surge Protection And Filtering Attributes
- Configurable Filtering Time
- 0 ms input, 3 ms input, 12 ms input
Surge Withstand1 kV power lines (AC) differential mode IEC 61000-4-5, 1 kV relay output differential mode IEC 61000-4-5, 0.5 kV power lines (DC) common mode IEC 61000-4-5, 2 kV power lines (AC) common mode IEC 61000-4-5, 2 kV relay output common mode IEC 61000-4-5, 1 kV I/O common mode IEC 61000-4-5, 1 kV shielded cable common mode IEC 61000-4-5, 0.5 kV power lines (DC) differential mode IEC 61000-4-5
Input Attributes
- Discrete Input Current
- 7 mA discrete input, 5 mA fast input
- Permitted Overload On Inputs
- +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 30 V DC 5 min maximum)analog input, +/- 13 V DC permanent)analog input, +/- 13 V DC permanent)analog input
- Analogue Input Resolution
- 10 bits
- Discrete Input Logic
- sink or source (positive/negative)
- Discrete Input Voltage
- 24 V
Input Impedance3.4 kOhm discrete input, 100 kOhm analog input, 4.9 kOhm fast input
Analogue Input Number2 0...10 V
Counting Input Number4 fast input (HSC mode) 100 kHz 32 bits
Discrete Input Number9 , discrete input 4 fast input IEC 61131-2 Type 1
Discrete Input Voltage TypeDC
Batteries & Runtime Attributes
- Battery Type
- BR2032 or CR2032X lithium non-rechargeable
