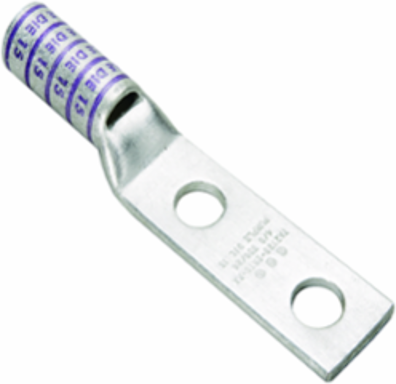

Long Length Barrel Copper Compression Terminal, 1 AWG, 35 kV, 3.13 Inch
Burndy

Burndy YAZ1C2TC14E2 Long Length Barrel Copper Compression Terminal, 1 AWG, 35 kV, 3.13 Inch

  • MPN: YAZ1C2TC14E2
  • UPC: 781810227787
  • PPN: BUR-25019149

CAD

$31.26

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Description

COPPER COMPRESSION TERMINAL.

Documentation & Downloads

Specifications

Dimensions

Dimension - B Length fraction
1-3/8 in
Dimension - Bolt Hole Size inch
0.27 in
Dimension - Hole Size mm
7 mm
Dimension - Length Overall inch
3.13 in
Dimension - Outside Diameter inch
0.46 in
Dimension - Strip Length inch
1-7/16
Dimension - Z inch
0.34 in
Dimension - B Length inch1.38 in
Dimension - Hole Size inch0.27 in
Dimension - L Length Overall mm80 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.67 in
Dimension - Stud Size inch1/4
Physical Attribute - Tongue AngleStraight

Certifications and Compliance

Certification - CSA Approved
Yes
Certification - UL Recognized
No
Standards - RoHS Compliance Status
CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes

Conductor Related

Conductor - Copper Str Navy Size
75 (37) Navy
Conductor - Material
Copper
Conductor - Copper Str Size1 AWG

General

Color Code
Green
Die Index
11;375
Feature - Barrel Type
Long
Physical Attribute - Number of Holes
2
Plated
Y
Trade Name
HYLUG™
UPC
781810227787
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated

Electrical Ratings

Rating - KVA
35 kV
Voltage - Maximum
35000
Rating - Minimum Voltage600

Logistics

Minimum Pack Quantity
20
