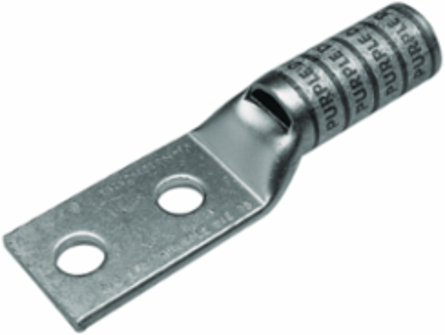

Burndy YAZ262TC38E16 Long Length Barrel Connector 4.51 Inch Overall Length, 2/0 AWG Copper, 35 kV Rating
- MPN: YAZ262TC38E16
- UPC: 781810563472
- PPN: BUR-50009727
CAD
$27.31
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CULUG-2/0, 2 HOLE 1-3/4
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.50 in
- Dimension - L Length Overall mm
- 115 mm
- Dimension - Pad Width inch
- 0.83 in
- Physical Attribute - Tongue Angle
- Straight
Dimension - Hole Size mm0.41
Dimension - Length Overall inch4.51 in
Dimension - Strip Length inch1-9/16
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 125 Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size2/0 AWG
General
- Color Code
- Black
- Die Index
- 13
- Feature - Barrel Type
- Long
- Plated
- Y
- Trade Name
- HYLUG™
- UPC
- 781810563472
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
Plating TypeTin
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818105634722
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 10
