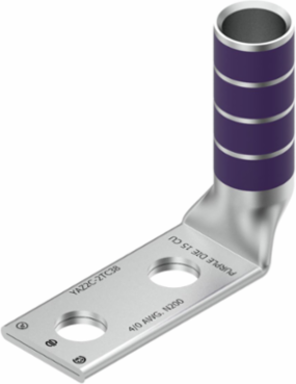

Burndy YAZ282TC3890 Long Length Barrel Copper Compression Terminal, 4/0 AWG, 35 kV, 2.30 Inch Overall Length
- MPN: YAZ282TC3890
- UPC: 781810229767
- PPN: BUR-25019350
CAD
$70.80
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
COPPER COMPRESSION TERMINAL.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length inch
- 1.62 in
- Dimension - Bolt Size fraction
- 3/8
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 58 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 1.02 in
- Dimension - Z inch
- 1.43 in
Dimension - Bolt Hole Size inch0.4 in
Dimension - Height inch2.36 in
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch2.30 in
Dimension - Outside Diameter inch0.69 in
Dimension - Strip Length inch1-11/16
Physical Attribute - Tongue Angle90 Degree
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 4/0 AWG
- Conductor - Copper Str Navy Size Range
- 200 (61) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Navy Size200 (61) Navy
Conductor - Copper Str Size4/0 AWG
General
- Color Code
- Purple
- Die Index
- 15
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 2
- Plated
- Yes
- Trade Name
- HYLUG™
- UPC
- 781810229767
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
Physical Attribute - Tongue TypeStandard
Plating TypeTin - Electro Plated
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818102297677
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 15
