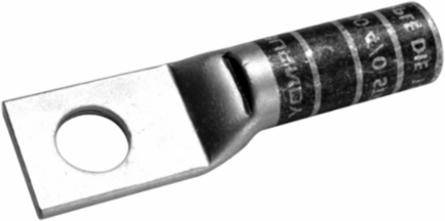

Burndy YAZ3CTC12 Long Length Barrel HYLUG Copper Compression Terminal, 3 AWG, 35 kV, 2.63 Inch Overall Length
- MPN: YAZ3CTC12
- UPC: 781810239629
- PPN: BUR-25020350
CAD
$25.62
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu Tubing Hylug (One Hole Code), 1 Hole with Inspection Window, #3 AWG Code,#2 SOL 50 Navy, 600V-35kV, 1/2"" stud, Long, Compression, 0.52 in BCD, White.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/4 in
- Dimension - Bolt Hole Size inch
- 0.52 in
- Dimension - Hole Size mm
- 13 mm
- Dimension - Length Overall inch
- 2.63 in
- Dimension - Outside Diameter inch
- 0.38 in
- Dimension - Strip Length inch
- 1-5/16
- Dimension - Z inch
- 0.55 in
Dimension - B Length inch1.25 in
Dimension - Hole Size inch0.52 in
Dimension - L Length Overall mm67 mm
Dimension - N inch0.53 in
Dimension - Pad Width inch0.71 in
Dimension - Stud Size inch1/2
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Solid Size
- 3 AWG
- Conductor - Copper Str Size
- 3 AWG
Conductor - Copper Solid Size Range3 AWG
Conductor - MaterialCopper
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Plated
- Y
- Sub Brand
- HYLUG
- Type
- Long Barrel, Skive, Tin Plated
- UPC 12 Digit
- 7818102396299
Color CodeWhite
Die Index9
Feature - Barrel TypeLong
Physical Attribute - Number of Holes1
Plating TypeTin - Electro Plated
Trade NameHYLUG™
UPC781810239629
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
