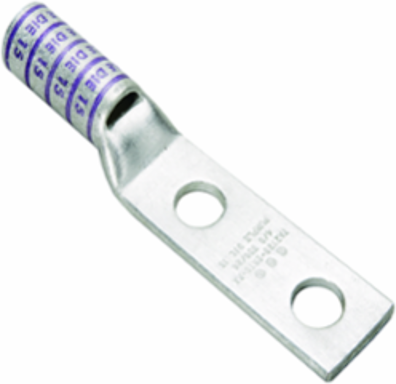

Burndy YAZ6C2TC14E2 HYLUG Copper Compression Terminal, 6 AWG, 35 kV, Long Barrel, 2 Holes
- MPN: YAZ6C2TC14E2
- UPC: 781810223444
- PPN: BUR-25018520
CAD
$10.46
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
CU Compression Terminal Code Conductor, Beveled Entry, 2 Hole/W/InspWindow, #6AWG(Code) 30(Navy), 600V-35kV, 1/4" Stud, 3/4" Spacing, Lng bbl, Tin Plated.
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-1/8 in
- Dimension - Bolt Hole Size inch
- 0.27 in
- Dimension - Hole Size mm
- 7 mm
- Dimension - Length Overall inch
- 2.78 in
- Dimension - Outside Diameter inch
- 0.29 in
- Dimension - Strip Length inch
- 1-3/16
- Dimension - Z inch
- 0.34 in
Dimension - B Length inch1.12 in
Dimension - Hole Size inch0.27 in
Dimension - L Length Overall mm71 mm
Dimension - N inch0.31 in
Dimension - Pad Width inch0.45 in
Dimension - Stud Size inch1/4
Physical Attribute - Tongue AngleStraight
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper Str Navy Size
- 30 (19) Navy
- Conductor - Material
- Copper
Conductor - Copper Str Size6 AWG
General
- Application
- For Code Conductor
- Connector Type
- Terminal
- Feature - Barrel Style
- Skived
- Material
- Copper
- Physical Attribute - Tongue Type
- Standard
- Plating Type
- Tin - Electro Plated
- Trade Name
- HYLUG™
- UPC
- 781810223444
Color CodeBlue
Die Index7;374
Feature - Barrel TypeLong
Physical Attribute - Number of Holes2
PlatedY
Sub BrandHYLUG
TypeLong Barrel, Skive, Tin Plated
UPC 12 Digit7818102234444
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
