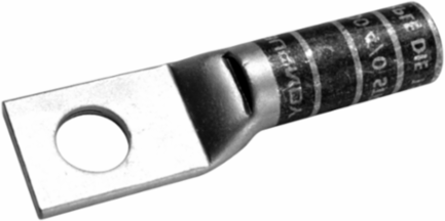

Burndy YAZV1CTC38FX Long Length Barrel Connector, 1 AWG Copper, 3/8 Inch Stud, 2.59 Inch Length
- MPN: YAZV1CTC38FX
- UPC: 781810241400
- PPN: BUR-25020515
CAD
$25.54
/ EA
Available to Order
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To View Branch Inventory And Your Custom Pricing
Description
Cu compression long barrel flex conductor, single hole/W/ insp window, #1 weld(225/24), #1 AWG, 3/8" stud, Tin plated, Green, 11 index
Documentation & Downloads
Specifications
Dimensions
- Dimension - B Length fraction
- 1-3/8 in
- Dimension - Bolt Hole Size inch
- 0.39 in
- Dimension - Hole Size inch
- 0.40 in
- Dimension - L Length Overall mm
- 66 mm
- Dimension - N inch
- 0.41 in
- Dimension - Pad Width inch
- 0.75 in
- Dimension - Stud Size inch
- 3/8
- Physical Attribute - Tongue Angle
- Straight
Dimension - B Length inch1.38 in
Dimension - Bolt Size fraction3/8
Dimension - Hole Size mm10 mm
Dimension - Length Overall inch2.59 in
Dimension - Outside Diameter inch0.51 in
Dimension - Strip Length inch1-7/16
Dimension - Z inch0.42 in
Certifications and Compliance
- Certification - CSA Approved
- Yes
- Certification - UL Recognized
- No
- Standards - RoHS Compliance Status
- CM
Certification - ETLNo
Certification - cULusNo
UL ListedYes
Conductor Related
- Conductor - Copper DLO Size
- 1 (225/#24) DLO
- Conductor - Copper Flex H Size
- 1 AWG
- Conductor - Copper Flex K Size
- 1 AWG
- Conductor - Copper Str Size
- 1 AWG
- Conductor - Material
- Copper
Conductor - Copper Flex G Size1 AWG
Conductor - Copper Flex I Size1 AWG
Conductor - Copper Flex M Size1 AWG
Conductor - CopperWeld Str Size1 F AWG;1 G AWG;1 J AWG;1 K AWG;1 N AWG
General
- Color Code
- Green
- Die Index
- 11;375
- Feature - Barrel Type
- Long
- Physical Attribute - Number of Holes
- 1
- Plating Type
- Tin
- Type
- Long Barrel, Skive
- UPC 12 Digit
- 7818102414000
Connector TypeTerminal
Feature - Barrel StyleSkived
MaterialCopper
PlatedY
Trade NameHYLUG™
UPC781810241400
Electrical Ratings
- Rating - KVA
- 35 kV
- Voltage - Maximum
- 35000
Rating - Minimum Voltage600
Logistics
- Minimum Pack Quantity
- 1
