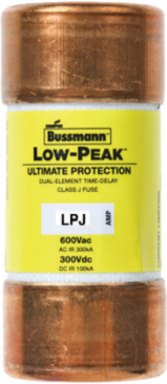

Bussmann LPJ-3SP LOW-PEAK CLASS J T/D
- MPN: LPJ-3SP
- UPC: 051712523219
- PPN: BUS-LPJ-3SP
CAD
$24.87
/ EA
Available to Order
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Company Stock:
0
Looking to buy a large quantity?
To view product inventory
Description
LOW-PEAK CLASS J T/D
Features
- Featuring a sophisticated dual-element construction with a minimum 10-second time-delay at 500% overload, the LPJ-3SP absorbs temporary current surges effortlessly. This performance is ideal for heavy industrial motors and transformers, preventing unnecessary system shutdowns while still delivering hyper-responsive short-circuit protection.
- Rated for up to 600V AC and packing an industry-leading 300,000-amp interrupting rating (AIR), this space-saving Class J fuse provides maximum current-limiting performance. It rapidly isolates massive electrical faults to minimize downstream component damage, making it the premier choice for modern, high-short-circuit-current-rated (SCCR) industrial control panels.
- Operating with advanced current-limiting capabilities, this fuse clears short-circuits faster than standard mechanical circuit breakers can react. By drastically restricting peak let-through energy (I^2t), it shields vulnerable variable speed drives (VFDs), solid-state relays, and PLCs from catastrophic thermal and magnetic destruction.
- Measuring only 2.25 in times 0.81 in (57.2 times 20.6 mm), this 3-amp ferrule-style fuse provides robust 600V protection in a fraction of the space required by traditional Class R or Class H fuses. This compact architecture allows panel builders to use smaller, lower-cost fuse blocks and disconnect switches, saving premium real estate inside crowded control enclosures.
Documentation & Downloads
Specifications
Additional
- Voltage
- 600 Vac, 300 Vdc
- Interrupting Rating
- 300 kA Vac, 100 kA Vdc
- Fuse Type
- Dual element, time-delay
- Compliance
- cULus Listed, UL 248-8, CSA C22.2 No. 248.8, CE, RoHS
Amperage3 A
Time-Delay10 seconds minimum at 500% rated current
Dimensions2.25 in x 0.81 in
