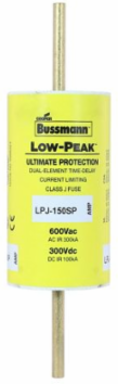

Bussmann LPJ-150SP LOW PEAK CLASS J T/D
Bussmann LPJ-150SP LOW PEAK CLASS J T/D
- MPN: LPJ-150SP
- UPC: 051712523431
- PPN: BUS-LPJ-150SP
In Stock
Company Stock:
00
Available to Ship Same/Next Business Day if In Stock and Ordered before 12:00 PM EST
Looking to buy a large quantity?
To view product inventory
CAD$139.90/ EA
Description
LOW PEAK CLASS J T/D
Features
- This high-performance Low-Peak™ fuse features a sophisticated dual-element design that provides a massive 10-second time-delay at 500% of the rated current. This allows industrial motors and heavy inductive loads to draw high inrush current without causing a nuisance trip, while still reacting instantly to dangerous short circuits.
- With a best-in-class 300,000 Amp interrupting rating (AIR), this fuse offers the industry’s highest level of overcurrent protection at 600V AC. It ensures that even in the event of a catastrophic electrical fault, the fuse will safely clear the circuit and prevent explosive damage to your switchgear and expensive machinery.
- As a UL Class J current-limiting device, the LPJ-150SP physically prevents peak fault currents from reaching their full destructive potential. By significantly reducing the let-through energy ($I^2t$), it lowers the Arc Flash hazard levels for your maintenance personnel and helps your control panels meet or exceed Short Circuit Current Rating (SCCR) requirements.
- Despite its heavy-duty 150-Amp capacity, the Class J dimensions are significantly smaller than equivalent Class R fuses, saving up to 60% of the space required in your electrical enclosure. This compact blade-style design is the ideal solution for modern, space-constrained industrial panels where high-capacity power distribution is required in a minimal footprint.
- This fuse provides "Type 2" coordination, meaning it clears faults so quickly that downstream components like motor starters and contactors remain undamaged and functional after the fault is cleared. This specialized protection level minimizes replacement costs and slashes recovery time, allowing your production line to return to service almost immediately.
Specifications
- Amperage
- 150 A
- Voltage
- 600 V
- Length
- 1.63 in
- Width
- 1.63 in
- Connection
- Blade end x blade end
- Compliance
- RoHS, UL Listed, CSA Certified
Interrupt Rating300 kA
ClassClass J
Height5.75 in
Weight0.18 lb
Fuse IndicatorNon-indicating
Downloads
