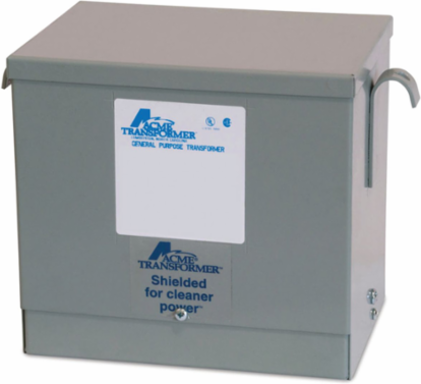

Acme Electric T2527051 Low Voltage Distribution Transformer 600/480V, 30/24kVA, Wall Mount
Acme Electric T2527051 Low Voltage Distribution Transformer 600/480V, 30/24kVA, Wall Mount
- MPN: T2527051
- UPC: 047503085844
- PPN: HBL-T2527051
- UNSPSC: 39121027
Spec sheet
Loading compare button...
In Stock
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$2519.82/ EA
Description
Low Voltage Distribution Transformer - Three Phase, 600/480 - 480/380V, 30/24kVA, Autotransformer
Features
- Quiet operation with sound levels below NEMA standards
Specifications
Specifications
- Country of Origin
- Mexico
- CSA Standard
- C22.2 No. 47
- kVA
- 30/24
- Primary Voltage
- 600/480 V
- Product Type
- Dry Type Distribution Transformer
- Taps % Steps
- 5.0%
- Height
- 15.21 in
- Mounting
- Wall
- UL Insulation Class
- 180°C
- Weight
- 152 lb.
- Mounting Type
- Wall
- ARRA Compliant
- Contact Manufacturer
- Freight Class Code
- 06342001
- Image Actual Or Representative
- R
- Sub Class Code
- D10D100
- Construction
- Encapsulated
- BOX SIZE
- 18.000x10.000x20.000 (in)
- Pallet Height
- 24.000 in
- Pallet Weight
- 1227.000 lb.
BNFC Taps2
Dimensions7.37 in x 19.25 in x 15.21 in
Max Temperature Rise115 Degrees Celsius
Product CategoryDry Type Distribution Transformer
Secondary Voltage480/380 V
Frequency Rating50/60 Hz
Length7.37 in
Width19.25 in
UL StandardUL 506
Material typeZFIN
Nema RatingNEMA 3R
Class CodeD10
Harmonization Code8504330020
Stock IndicatorS - Shelf Stock
Winding MaterialAL
Base Unit of MeasureEA
Carton - SCC-14 Next Lower Level Sub Pack00047503085844
Pallet Length40.000 in
Pallet Width40.000 in
Certifications
- Buy American Compliant
- Contact Manufacturer
