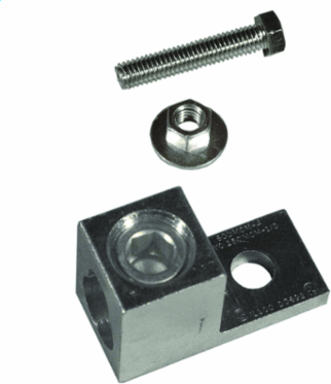

Acme Electric LUG1 Lug Kit Max 37kVA 1Phase 45kVA 3 Phase, Dimensions 8.8 in x 7 in x 8.8 in

Lug Kit Max 37kVA 1Phase 45kVA 3 Phase, Dimensions 8.8 in x 7 in x 8.8 in
  • MPN: LUG1
  • UPC: 047503085318
  • PPN: HBL-LUG1
  • UNSPSC: 39121405

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$119.65/ EA

Description

Lug Kit - Max. 37kVA 1Phase/45kVA 3 Phase

Specifications

Specifications

Country of Origin
MX
Each - Width
5.000 in
Length
8.8 in
Product Type
Accessories
Weight
6 lb.
ARRA Compliant
Contact Manufacturer
Freight Class Code
06342001
Image Actual Or Representative
R
Base Unit of Measure
EA
Carton - SCC-14 Next Lower Level Sub Pack
00047503085318
Pallet Length
30.000 in
Pallet Width
30.000 in
Dimensions8.8 in x 7 in x 8.8 in
Height8.8 in
Product CategoryAccessories
Size8.8 in x 7 in x 8.8 in
Width7 in
Class CodeD10
Harmonization Code8536904000
Sub Class CodeD10D220
BOX SIZE3.000x6.000x5.000 (in)
Pallet Height8.000 in
Pallet Weight63.000 lb.
