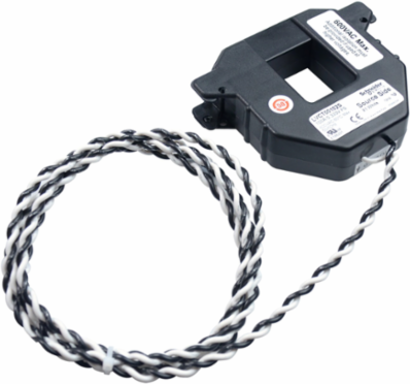

Schneider Electric LVCT00102S Split-Core Current Transformer 100A 0.333V 31mm x 100mm

MPN: LVCT00102S
PPN: SCH-LVCT00102S
UNSPSC: 39121106

$118.18

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Available To Ship Immediately:0

Loading add to cart quantity...

Looking to buy a large quantity?

To View Branch Inventory And Your Custom Pricing

Spec sheet

Compare

Description

This low-voltage split-core current transformer is part of PowerLogic BCPM (Branch Circuit Power Meter). It is Ideal for retrofit applications with Schneider Electric energy meters which accept low voltage current transducer input It is rated for a 100A circuit. 0.333 V output, size 2. Split core opening is 31 mm x 100 mm.

Features

power metering current transformer
UL recognised
Compatible with multi-circuit meter like BCPM or EM4900
Compatible with LVCT type panel meters

Documentation & Downloads

Specifications

Key Specifications

Country of Origin	United States
Width	4.76 in

Height	3.94 in
Depth	30 mm

Complementary Attributes

Line Rated Current	100 A

Important Information Attributes

Product Destination	BCPM, BCPMSC, Enercept, iEM3000, EM3500, EM4200, EM4900
Local Publishable Date	2025-10-03
Device Type	Relay, Control & Measurement - measuring, monitoring device
Traceability	No
Weee Product Category	5
Rohs Eur In Scope	Yes
Rohs Eur Conformity Date	2105
China Rohs In Scope	Yes
With Recycled Cardboard	No
Product Contributes To Saved And Avoided Emissions	No
Compatibility Code	LVCT
Device Short Name	LVCT
Energy Efficiency Optimized	False
Network Frequency	50/60 Hz
Product Or Component Type	current transformer
Range Of Product	PowerLogic
Sustainable Packaging	No
Height Nominal	internal: 30 mm
Width Nominal	internal: 31 mm
Certificate Agency	UL 61010
Nbr. Of Units In Pkg.	1
Warranty In Months	18

Local Data Status	Publishable
Return Indicator	Y
Serviceability	No
Weee Scope	In
Scope Perimeter	At least in Europe
Rohs Eur Status	Compliant
Rohs Eur Full Compliance Status	Compliant
China Rohs Label	1
Without Single Use Plastic	No
Product Kit Identifier	N
Current Transformer Type	split core balance
Electrical Connection	cable 1.8 m 18 AWG) 600 V
Measurement Accuracy	1 % 10...100 %
Product Availability	Non-Stock - Not normally stocked in distribution facility
Range	PowerLogic
Returnability	Yes
Weee Label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins.
Height Useful	external: 100 mm
Width Real	external: 121 mm
Accessory / Separate Part Category	measurement accessory
Customs Code	8504314035

Environment Attributes Main

Ambient Air Temperature For Operation	-15-60 °C, -15-60 °C
Take Back	No
Recycled Metal Content At Cr Level	0 %
Toxic Heavy Metal Free	Yes
Eu Rohs Directive	Compliant
Packaging Without Single Use Plastic	No
Relative Humidity	95-95 %

Ambient Air Temperature For Storage	-40-70 °C, -40-70 °C
Reach Free Shvc	Yes
China Rohs Regulation	X
Mercury Free	Yes
Packaging Made With Recycled Cardboard	No
Reach Free Of Svhc	Yes
