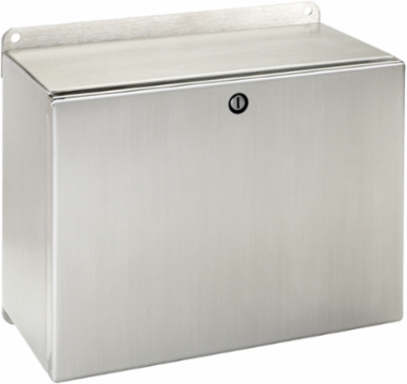

Nvent Hoffman LWC234616SS InLine Landscape Enclosure 230x460x155mm Stainless Steel, NEMA 4X

InLine Landscape Enclosure 230x460x155mm Stainless Steel, NEMA 4X
  • MPN: LWC234616SS
  • UPC: 783510110444
  • PPN: HOF-LWC234616SS
  • UNSPSC: 39121324

Spec sheet

Loading compare button...

In Stock

Company Stock:

00

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$1500.15/ EA

Description

InLine stainless steel enclosure great for many applications where a landscape orientation is ideal. This InLine Landscape Enclousre Window Door Type 4X, LWC234616SS item measures 230x460x155mm with a material of SS304, Brushed.

Features

  • Full width bracket for mounting flexibility
  • Seams continuously welded and ground smooth
  • External formed body flange trough
  • Large perimeter body opening
  • Mounting brackets are spot-welded to top and bottom of enclosure
  • Mounting brackets have predrilled mounting holes; customer-specific location holes can be drilled for mounting flexibility
  • Seamless foam-in-place gasket
  • M6 ground stud with base flange on body; M6 bonding provision with base flange on door
  • Furnished hardware kit includes panel mounting screws and grounding hardware
  • Hinged door with removable hinge pins and self-grounding quarter-turn latch system with double seal
  • Door opens 180 degrees
  • Window door models include 3/16-in. (4.8-mm) clear polycarbonate window mounted flush with door surface

Specifications

Specifications

BABA
Contact Manufacturer
Width (W)
460
Protection Rating
NEMA Type 12
Finish
Brushed #4
Door Thickness
1.59
Window Size (N)
16.11
Mounting Studs (J)
16.36
IP Rating
IP66
Sub Brand
InLine
Size
230x460x155mm
Height (H)230
Depth (D)155
Product FamilyInLine
Body Thickness1.98
Clear Space Above Panel5.51
Mounting Hole Size16.99
Cover StyleWindow
Weight13
MaterialStainless Steel
NEMA Rating4X Watertight, corrosion-resistant
