Lutron MA-T51MN-HT Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot

Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
Maestro Countdown Timer, Multi-location/single-pole, neutral required, 120V/600W/VA (5A) in hot
  • MPN: MA-T51MN-HT
  • UPC: 027557291019
  • PPN: LUT-MA-T51MN-HT
  • UNSPSC: 39122208

Spec sheet

Loading compare button...

Available to Order

Company Stock:

0

Lead times may vary. For an accurate estimate please contact us.

Looking to buy a large quantity?

To view product inventory

CAD$61.53/ EA

Description

The Lutron Maestro Timer Switch for Fans and Lights is rated to work with up to 150W of LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV, or 3A general purpose fans. The Maestro Timer Switch requires a neutral wire making it suitable for DC and high efficiency exhaust fans. The Maestro Timer Switch is compatible with 3-way/multi-location switching applications; Lutron Accessory switches are required (MA-AS/MSC-AS). Use up to 9 Lutron Accessory switches with one Lutron Maestro Timer Switch; existing 3-way switches are not compatible. The Maestro Timer switch completes any project and matches the Maestro aesthetic for areas that don’t require a Maestro dimmer or sensor. Save energy by using the Maestro Countdown Timer in closets, attics, bathrooms, and other low-traffic areas to ensure a light or fan is never left on for a long time. Use the large tap switch to turn the timer on, or double tap for always on; use the raise/lower buttons on the side to adjust to the desired time-out option ranging from 5-60 minutes. Softly lit orange lights indicate the time remaining before turn-off. Top green LED indicator light labeled ON, has no time limit. The bottom LED blinks rapidly to indicate one minute of time remaining. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features

  • Includes (1) Maestro Countdown Timer Switch with Neutral; Satin Finish

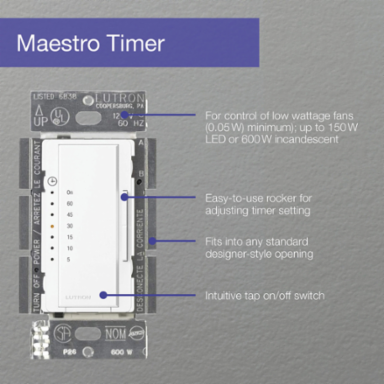

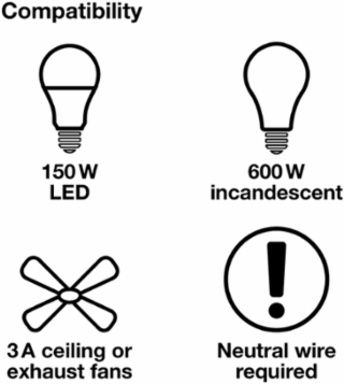

  • Rated to work with up to 150W LED bulbs, 600W ELV/Incandescent/Halogen, 450W MLV or 3A general purpose fans
  • Neutral required; 120V
  • 5W/.05A minimum load, suitable for DC and high efficiency exhaust fans
  • Tap once to start timer or double tap for always on; use raise/lower buttons to adjust countdown time anywhere from 5 to 60 minutes (5, 10, 15, 30, 45, and 60 minutes)
  • Accessory switch (MA-AS/MSC-AS) required for 3-way/multi-location applications; traditional 3-way switches will not work with this device
  • Use up to 9 accessory switches (MA-AS/MSC-AS) with one Lutron Maestro 8A Timer Switch

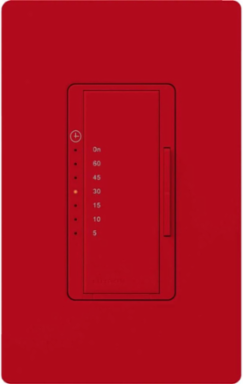

  • Orange LEDs indicate timer duration or remaining time in minutes; Bottom LED blinks rapidly to indicate one minute of time remaining
  • Available in 10+ colors
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Rated for 5 A incandescent/halogen, magnetic low-voltage, electronic low-voltage, LED/CFL, or fluorescent loads, or 3 A general purpose fans

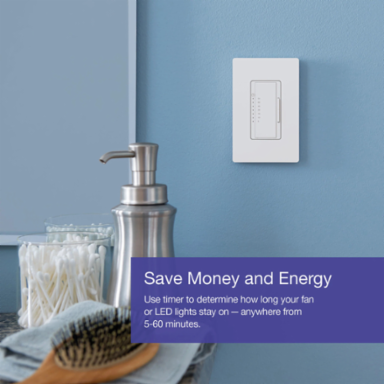

  • Use with exhaust fans to reduce moisture, mold, and mildew in bathrooms
  • Use with lighting
  • Tap on to start timer (5-60 minutes); tap off; tap twice for full on with no timer action
  • Touch rocker to adjust countdown time
  • One minute warning before lights/fan go off
  • Timer advanced programming features available.

Specifications

Specifications

Amperage Rating
5 A
Connection
Screw terminal
Contact Rating
5 A
Insulation
Plastic
Size

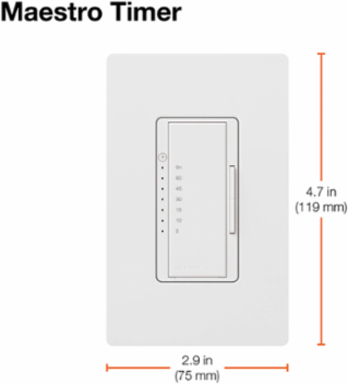

4.69 x 2.94 in
Type
Countdown timer control switch, multi-location/single-pole
Wattage
600 W
Color
Hot
Family Color
Red
ApplicationLighting Control
Contact ConfigurationN-O
EnclosurePlastic
MountingWallbox
Timing Range5 - 60 min
Voltage Rating120 V
Aesthetic FinishSatin
Decorative ColorHot
FinishSatin
