Maestro LED+ Vacancy Sensor Dimmer Switch, 600W Incandescent/150W LED, Black
Maestro LED+ Vacancy Sensor Dimmer Switch, 600W Incandescent/150W LED, Black
Maestro LED+ Vacancy Sensor Dimmer Switch, 600W Incandescent/150W LED, Black
Maestro LED+ Vacancy Sensor Dimmer Switch, 600W Incandescent/150W LED, Black
Maestro LED+ Vacancy Sensor Dimmer Switch, 600W Incandescent/150W LED, Black
Lutron

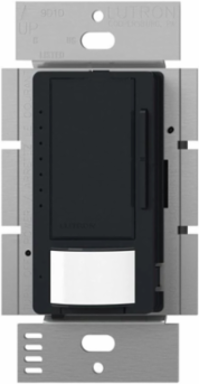

Lutron MSCL-VP153M-BL Maestro LED+ Vacancy Sensor Dimmer Switch, 600W Incandescent/150W LED, Black

  • MPN: MSCL-VP153M-BL
  • UPC: 784276054881
  • PPN: LUT-MSCL-VP153M-BL
  • UNSPSC: 39122236

CAD

$56.37

/ EA

Available to Order

Lead times may vary. For an accurate estimate please contact us.

Company Stock:

0

Looking to buy a large quantity?

To view product inventory

Spec sheet

Description

The Lutron Maestro LED+ Motion Sensor Dimmer Switch (vacancy only) works just like a Lutron Maestro dimmer, plus the addition of Lutron’s advanced motion sensing technology to automatically and gradually turn the lights off. The LED+ Vacancy Sensor Dimmer Switch is rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs. Install in a single pole, 3-way with existing switch, or with Maestro companion dimmers (MA-R/MSC-AD) to dim from up to 9 locations. Use the raise/lower buttons to adjust the brightness for any activity or determine the preset level to ensure lights always turn on to your desired light level. The passive infrared (PIR) sensor, covered by a tamper resistant lens, detects heat from occupants moving and has a 180-degree field of view (900 sq ft major motion & 400 sq ft minor motion coverage). Unlike other manufacturers, Lutron sensors use Cross Correlation Technology (XCT) to also detect fine motion, such as typing at a desk or reading a book – ensuring lights won’t turn off inadvertently when you’re still in the room. Easy button programming is available to customize both the dimmer and the sensor’s functions, such as timeout, low-end trim, and sensitivity. Lutron sensors have an adjustable timeout (1, 5, 15 or 30 minutes) to control how long the lights stay on after leaving the room. The low-end trim is the LED’s dimmest stable light level to which the dimmer can be lowered to. The sensitivity of the PIR sensor can also be changed so it only detects larger motion. Available in 10+ colors. Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately).

Features

  • Includes (1) Maestro LED+ Motion Sensor/Dimmer Switch, Vacancy Only; Gloss Finish
  • Rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs; No Neutral or Ground required
  • Screw Terminal or Push-in Installation; 120V
  • Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R/MSC-AD); Compatible with an existing 3-way switch
  • Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
  • 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
  • Easy button programming mode available to customize dimmer and sensor functions such as timeout, fade-off rate, and sensitivity
  • Complies with Title 20/24 Section 110.9 for “automatic shutoff”
  • Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)Available in 10+ colors
  • Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
  • Passive infrared sensors that automatically control the lights in an area
  • These sensors detect heat from occupants moving within an area to determine when the space is occupied
  • Combines a Maestro LED+ dimmer with a vacancy sensor
  • Controls CFL, LED, incandescent, and halogen load types
  • Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
  • 180 degree sensor field-of-view
  • Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
  • Adjustable timeout (1, 3, 5, 15, or 30 minutes) and high/low sensitivity adjustment
  • Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level
  • Off warning fades lights to off over a period of 10 seconds
  • Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
  • Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches

Documentation & Downloads

Specifications

Key Specifications

Application
Lighting Control
Decorative Color
Black
Environmental Conditions
0 to 90% humidity, non-condensing. Indoor use only.
Load
600 W incandescent/halogen/140 W CFL/LED
Operating Temperature, Minimum
32 F
Sensing Range, Minimum
400
Supply Voltage
120
Mounting
Wallbox
Aesthetic Finish
Glossy
Finish
Gloss
BodyPlastic
EnclosurePlastic
Family ColorBlack
Operating Temperature, Maximum104 F
Sensing Range, Maximum900
SensorYes
TypeVacancy sensor dimmer, multi-location/3-way/single-pole
Sensing Range900 ft2 (82 m2) major motion coverage/400 ft2 (36 m2) minor motion coverage
ColorBlack
Operating Temperature32 to 104 F
