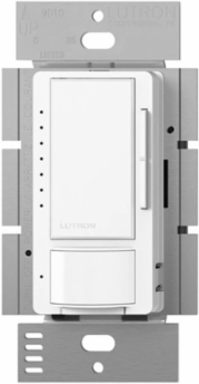

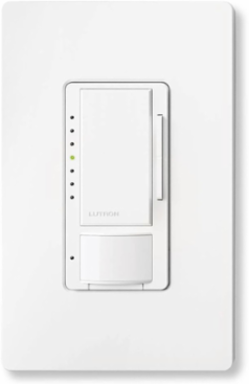

Lutron MSCL-VP153M-WH Maestro Vacancy Sensor Dimmer Switch, 150W LED/600W Incandescent, White






Lutron MSCL-VP153M-WH Maestro Vacancy Sensor Dimmer Switch, 150W LED/600W Incandescent, White
- MPN: MSCL-VP153M-WH
- UPC: 784276055116
- PPN: LUT-MSCL-VP153M-WH
- UNSPSC: 39122236
Spec sheet
Loading compare button...
Company Stock:
00
Lead times may vary. For an accurate estimate please contact us.
Looking to buy a large quantity?
To view product inventory
CAD$56.37/ EA
Description
Features
- Includes (1) Maestro LED+ Motion Sensor/Dimmer Switch, Vacancy Only; Gloss Finish
- Rated for 150W dimmable LED or 600W Incandescent/Halogen bulbs; No Neutral or Ground required
- Screw Terminal or Push-in Installation; 120V
- Single Pole/Multi-location dimming with Lutron Maestro Companion dimmers (MA-R/MSC-AD); Compatible with an existing 3-way switch
- Features passive infrared (PIR) motion detection with exclusive Lutron XCT Technology for fine motion detection, which is 2-3x better at picking up motion than other manufacturers
- 180-degree sensor field of view (900 sq ft major motion & 400 sq ft minor motion coverage); Tamper-resistant lens
- Easy button programming mode available to customize dimmer and sensor functions such as timeout, fade-off rate, and sensitivity
- Complies with Title 20/24 Section 110.9 for “automatic shutoff”
- Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)Available in 10+ colors
- Available in 10+ colors; Pairs perfectly with Lutron Claro wall plates for consistent color matching (wall plates are sold separately)
- Passive infrared sensors that automatically control the lights in an area
- These sensors detect heat from occupants moving within an area to determine when the space is occupied
- Combines a Maestro LED+ dimmer with a vacancy sensor
- Controls CFL, LED, incandescent, and halogen load types
- Passive infrared motion detection with exclusive Lutron XCT Technology for fine motion detection
- 180 degree sensor field-of-view
- Up to 30 ft x 30 ft (9 m x 9 m) [900 ft2 (81 m2)] major motion coverage and 20 ft x 20 ft (6 m x 6 m) [400 ft2 (36 m2)] minor motion coverage
- Adjustable timeout (1, 3, 5, 15, or 30 minutes) and high/low sensitivity adjustment
- Adjustable settings for auto-on light level (occupied level): 100 %, 50 %, last light level, or locked preset light level
- Off warning fades lights to off over a period of 10 seconds
- Advanced Maestro dimmer features available (locked preset, fade-to-on, and fade-to-off, etc.)
- Works with a single standard mechanical 3-way switch or up to 9 companion dimmers/switches
Specifications
Specifications
- Enclosure
- Plastic
- Family Color
- White
- Operating Temperature, Minimum
- 32 F
- Sensor
- Yes
- Sensing Range, Minimum
- 400
- Load
- 600 W incandescent/halogen/140 W CFL/LED
- Application
- Lighting Control
- Mounting
- Wallbox
- Finish
- Gloss
- Operating Temperature
- 32 to 104 F
